DIY Sewing Machine Cabinet: Build Your Own Studio Space
Learn how to design and build a sturdy, space-saving DIY sewing machine cabinet with a practical layout, safe finishes, and step-by-step guidance for home sewists and beginners.
With this guide, you’ll design and build a durable, space-saving DIY sewing machine cabinet tailored for a home studio. You’ll learn planning, selecting materials, and executing a clear, step-by-step build suitable for beginners. The process emphasizes sturdy hardware, safe finishes, and efficient layout to keep your sewing space organized and productive.
Why a DIY Sewing Machine Cabinet Makes Sense
A dedicated cabinet can transform a crowded sewing space into an organized, efficient workstation. For home sewists, a diy sewing machine cabinet combines the machine, storage, and workspace into a single ergonomic unit. A well-designed cabinet protects the machine, reduces vibrations, and keeps threads, notions, and patterns within easy reach. By customizing the layout to your equipment and workflow, you can maximize visible workspace and minimize clutter. According to Sewing Machine Help, a purpose-built DIY cabinet can improve your sewing accuracy and comfort, especially during long sessions. Start with the basics: identify your machine’s footprint, the space available, and how you want to access the needle, bobbin, and power switch. This section introduces the core reasons to consider building your own cabinet and sets expectations for the rest of the guide, highlighting how a cabinet can adapt to your sewing habits and room layout.
Tools & Materials
- Plywood sheets (suitable for cabinet sides and top)(Minimum thickness should be selected based on your design; consider 1/2" to 3/4" for strength)
- MDF boards (optional)(Good for painted surfaces; heavier than plywood)
- Solid hardwood (optional, for edges or face frame)(Quality trim or face frame pieces)
- Wood glue(Fast-drying, water-resistant if possible)
- Wood screws (various lengths)(Pilots for holes to prevent splitting)
- Brad nails or finish nails(For temporary hold or hidden fastenings)
- Sandpaper (various grits)(60-120 grit for rough work, 180-220 for finish)
- Wood filler(For gaps and joints)
- Edge banding or veneer (optional)(For exposed edges)
- Hinges (top/door)(Depends on door design)
- Drawer slides (if using drawers)(Choose smooth, full-extension slides)
- Drafting or measuring tools (tape measure, square, pencils)(Precise measurements matter)
- Drill/driver and bits(For pilot holes and assembly)
- Circular or miter saw(Cut straight, clean edges)
- Clamps (bar clamps or C-clamps)(Hold parts during gluing)
- Sander or sanding block(Finish sanding before final coats)
- Paint or stain and topcoat(Choose water-based or oil-based finish depending on preference)
- Ventilated workspace or fume extraction(For finishing stages)
- Anti-tip hardware(Optional but recommended for safety)
- Casters or feet with locking wheels(For mobility if desired)
- Cable management clips/ducting(Keep cords tidy)

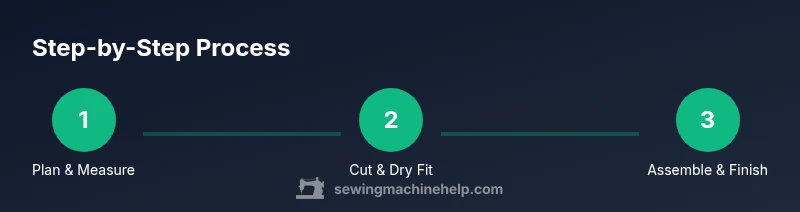

Steps
Estimated time: 8-12 hours
- 1
Define footprint and layout
Sketch the cabinet outline to fit your machine and workspace. Mark a knee space, door opening, and any pull-out surfaces. Ensure ample clearance for door swing and cord access.
Tip: Draw the layout to scale on graph paper or with a CAD app. - 2
Gather materials and cut panels
Select your board stock and cut the base, sides, top, and internal shelves to the planned dimensions. Use a straightedge and clamp guides to ensure square cuts.
Tip: Always cut slightly undersized, then trim to fit during dry-fit. - 3
Assemble base frame
Construct a rigid base using glue and screws. Add corner blocks if needed for extra support and ensure level on your floor surface.
Tip: Dry-fit the frame before gluing to verify alignment. - 4
Attach side panels and top
Fix side panels to the base, then secure the top panel with appropriate fasteners. Create knee space opening as designed.
Tip: Use clamps to hold parts while fastening; check for squareness. - 5
Install internal storage and pull-out surfaces
Mount shelves, dividers, and any pull-out trays. Ensure smooth operation and adequate clearance behind doors.
Tip: Test the tray with a mock load before final assembly. - 6
Fit doors and hardware
Attach doors with hinges aligned to cabinet frame. Install drawer slides or a retractable tray if included.
Tip: Check door alignment and tighten screws gradually. - 7
Sanding and surface prep
Sand all exposed edges and mating surfaces. Fill gaps, prime if painting, and remove all dust before finishing.
Tip: Wipe with a tack cloth to remove fine dust. - 8
Apply finish and sealing
Apply paint or stain and seal with at least two coats; allow proper cure time between coats.
Tip: Follow product instructions for dry times. - 9
Mount anti-tip hardware and test
Secure the cabinet to the wall and test stability. Plan for cable routing and power access under the top surface.
Tip: Always verify weight distribution and secure mounting.
Your Questions Answered
What are the first steps to plan a DIY sewing machine cabinet?
Start by measuring your sewing machine, the available space, and planned clearance. Sketch a layout that accommodates a knee opening, cord management, and storage. This planning phase reduces rework later.
Begin by measuring your machine and space, then sketch a layout with knee space and storage so you’re ready to cut.
What materials work best for a durable cabinet?
Plywood offers strong, stable framing, while MDF provides a smooth surface for painting. Hardwood trims add durability at a higher cost. Choose a balance based on budget and finish preference.
Plywood is a good balance of strength and cost; MDF is great for painted finishes.
Do I need anti-tip hardware?
Anti-tip hardware helps prevent the cabinet from tipping, especially when the space is small or mobile. Install it if you’re mounting to a wall or using wheels with brakes.
Yes, anti-tip hardware improves safety and stability.
How long does it take to complete a DIY cabinet?
A typical project can take anywhere from half a day to a full weekend depending on complexity, tools, and finishes. Factor in drying time between coats if painting or sealing.
Most hobbyists finish it over a weekend, including drying time for finishes.
Can this cabinet be mobile?
Yes. Using locking casters can make the cabinet movable while preserving stability when parked. Ensure casters support the machine’s weight and provide a level surface.
Yes, add locking wheels for mobility and stability.
What maintenance does a DIY cabinet require?
Periodic dusting, re-tightening hardware, and reapplying finish when wear appears keep the cabinet durable. Check hinges and slides for smooth operation.
Dust and check hardware regularly to keep it working well.
Watch Video
The Essentials
- Plan layouts around your machine and workspace.
- Choose materials that balance durability and weight.
- Dry-fit and test hardware before final assembly.
- Finish with durable sealant and secure anti-tip hardware.
