Sewing Machine Thread Bobbin: Complete Guide

The role of the bobbin in a sewing machine

The bobbin is the little spool that supplies the lower thread. In most home sewing machines, the bobbin sits in a metal or plastic case beneath the needle plate and works with the upper thread to form stitches. When the needle carries thread from the top, the bobbin thread is picked up by the hook and forms a balanced stitch. According to Sewing Machine Help, understanding the bobbin's function is the foundation of trouble-free sewing. The bobbin's job is not to wind continuously or feed thread alone; it provides the bottom thread as the needle pushes the top thread toward the fabric. If the bobbin is empty, mis-threaded, or wound unevenly, stitches will pucker, skip, or jam. The bobbin also determines stitch density and fabric compatibility; using the wrong bobbin type can cause tension problems or thread breakage. In practice, getting the bobbin and upper thread to cooperate is the first skill for any home sewer. Acquiring a spare bobbin and keeping it wound consistently helps you troubleshoot quickly when problems arise.

• Practice with spare bobbins to understand how tension changes with different fabrics.
• Keep a small container of pre-wound bobbins ready for quick repairs.
• Record which bobbins work best with specific threads and fabrics.

Tip: Always start with the machine unplugged when removing or inserting a bobbin to avoid accidents.

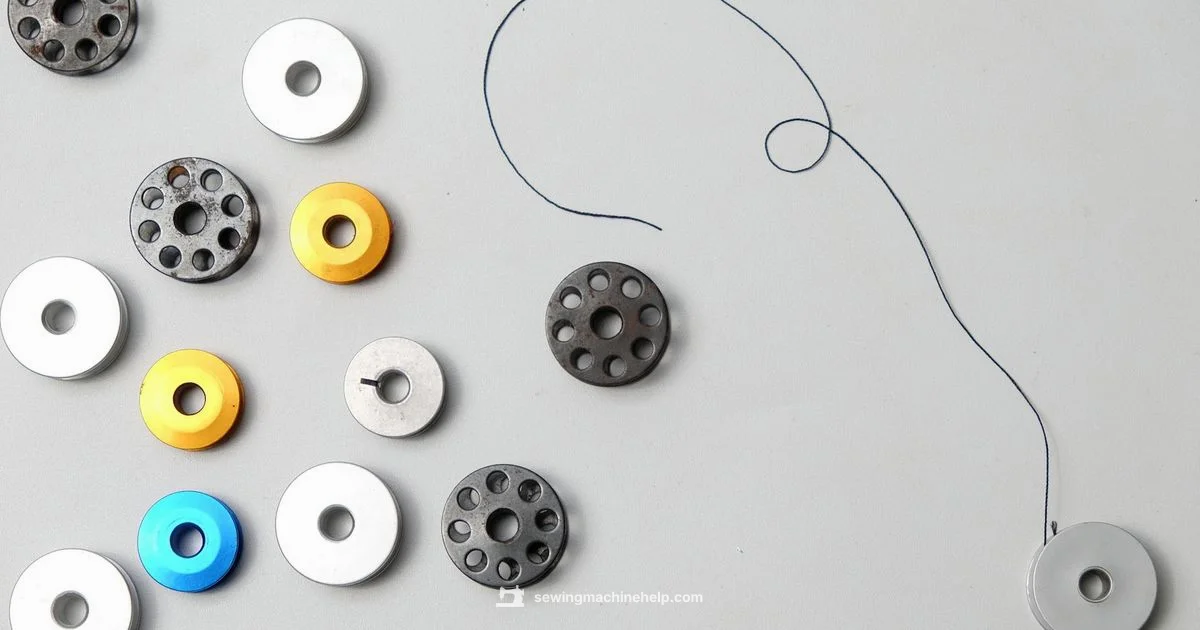

How bobbins differ by material and shape

Bobbins come in several materials, most commonly metal and plastic. Metal bobbins tend to be sturdier and last longer, making them ideal for heavy fabrics and high-use projects. Plastic bobbins are lighter and often compatible with many compact, portable machines. The shape and size of a bobbin also vary by brand and model; some machines use standard class 15 or 15J bobbins, while others require proprietary shapes. Before buying extras, check your user manual or the machine’s label for the correct bobbin type and size. Using the wrong bobbin can cause constant tension changes, thread jams, or uneven stitches. If you are unsure, start with the brand-recommended bobbin type and test on scraps before committing to a project. This is a common adjustment point for beginners and a frequent source of frustration if ignored. Regularly cleaning around the bobbin area helps you see differences in how each bobbin performs across fabrics.

• Always verify compatibility with your specific machine model.
• Consider keeping both metal and plastic options for different projects.
• Test new bobbins on scrap fabric to gauge tension and stitch quality.

Note: Some older machines may require a nonstandard bobbin that matches their timing and hook system.

Winding the bobbin correctly

Winding the bobbin correctly is essential for steady bottom stitches and avoiding thread nests. Start with clean thread and a wound bobbin that spins smoothly. Place the thread end under the bobbin’s tension mechanism and guide it according to your machine’s path. Hold the thread tail until several turns are made to secure the winding. Stop once the bobbin is evenly filled, leaving a little space near the top so the thread doesn’t slip over the edge. If you notice uneven winding, stop and reset—overfilled bobbins can cause poor feeding, while underfilled ones may break the bottom thread chain entirely. For most machines, the wind should go in a clockwise direction; if your manual recommends a different direction, follow that guidance. After winding, gently tug the thread to confirm it’s secure. Then place the bobbin in its case with the thread feeding in the correct direction to avoid a tangled start.

• Use scrap fabric to test the first stitches after winding.
• Rewind if you see loose or bulky windings near the edge.
• Do not overfill the bobbin; aim for consistency and tension balance.

Pro tip: If you are new to winding, practice with several bobbins to notice how small changes in tension affect the feed.

Inserting and threading the bobbin case

Inserting the bobbin into its case is a step many beginners overlook, but it sets the foundation for a clean stitch. Hold the bobbin so the thread winds clockwise and sits snugly inside the case. Place the case into the machine with the tab aligned to ensure it seats correctly. The thread should feed from the bottom of the bobbin toward the top as you guide it through the case opening. Pull gently to check that the thread moves freely and that the case rotates only when properly engaged. If you see the thread twist or loop, rethread the case path and confirm the bobbin is seated properly. A common issue is thread catching on the edge of the case or a misaligned spring; if encountered, remove the bobbin, clean lint, and reinsert using the manufacturer’s recommended steps. Regular checks keep the lower thread reliable and the upper thread tension balanced.

• Align the bobbin with the case orientation recommended by your manual.
• Ensure the case locks securely into place before stitching.
• Verify thread exits smoothly from the pickup point after you start testing.

Note: If your machine uses a drop-in bobbin, the threading path may be different; always consult the manual for your model.

Common bobbin issues and troubleshooting

Even experienced sewists run into bobbin problems from time to time. Common symptoms include skipped stitches, tight bottom threads, or loops forming on the underside of the fabric. Start troubleshooting by rechecking the upper thread path and rethreading the needle with the presser foot up to release tension. Inspect the bobbin for correct winding and seating; a loose or unevenly wound bobbin is a frequent culprit. Look for lint build-up inside the bobbin area, especially around the hook race and bobbin case; clean with a small brush or compressed air if available. If stitches remain irregular, try a different bobbin brand or size that is compatible with your machine. Always test on scrap fabric and compare results with a known-good setup. Document what you changed so you can replicate successful configurations in future projects. Remember to keep spare bobbins wound and ready for when problems arise.

• Verify both upper and lower threads are correctly threaded and tensioned.
• Clean lint from the bobbin area and check for damaged parts.
• Use manufacturer-recommended bobbin type and size.

Housekeeping tip: Regularly inspecting the bobbin area after heavy projects prevents small issues from turning into stubborn problems.

Choosing the right bobbin for your machine

Choosing the right bobbin begins with your machine’s manual or the model label. Look for the correct class and size, matching the bobbin type to the hook system and needle plate. Not all bobbins are interchangeable; using the wrong type can cause tension imbalances, broken threads, or misaligned stitch formation. If you sew a lot with different fabrics, consider having a few tried-and-true bobbins ready for quick changes. Keep a note of which bobbin works best with a specific thread type and fabric weight; this helps you dial in tension faster during future sessions. If you are unsure, start with the manufacturer-specified bobbin and test on scrap fabrics with various stitch settings. In the long run, investing in official bobbins from your brand can save time and reduce headaches during projects.

• Always verify compatibility with your specific model.
• Keep a few spare bobbins wound and ready for different fabrics.
• Record successful combinations of bobbin, thread, and fabric for future projects.

Quick check: If you notice frequent thread breaks, re-evaluate the bobbin type and winding method before adjusting tension settings on the machine.

Maintenance tips for a smooth bobbin operation

A well-maintained bobbin system reduces the likelihood of tension issues and jams. Regular cleaning around the bobbin area keeps lint from interfering with the hook and feed mechanism. Wipe away lint after completing a sewing session, especially when working with wool or fibers that shed. Check the bobbin case and hook for wear, and replace worn parts as needed. Oil is rarely required on modern machines; if your manual calls for lubrication, follow the exact schedule and use the recommended oil sparingly only on designated points. Store spare bobbins in a clean, dry container and label them if you are using different thread types. Finally, rotate your bobbin stock to ensure you are testing fresh thread and preventing weathering or junction problems that can alter tension.

• Clean the bobbin area after heavy sewing sessions.
• Use only manufacturer-approved oils and lubricants.
• Rotate spare bobbins to keep threads fresh and untangled.

Advisor note: The more disciplined you are about maintenance, the less you encounter low-tension anomalies or bottom-thread issues during projects.

Authority sources

For further reading and verification, consult authoritative sources that discuss bobbin systems and threading in sewing machines. These sources provide definitions, diagrams, and troubleshooting tips that can help you diagnose issues faster and with confidence.

• https://www.britannica.com/technology/sewing-machine
• https://extension.illinois.edu/topic-files/sewing-machine-bobbin-tips
