How to Fix a Sewing Machine Handwheel: Step-by-Step Guide
Learn how to diagnose and fix a sewing machine handwheel safely with this comprehensive, step-by-step guide. Discover common causes, essential tools, and practical troubleshooting tips for home sewists and beginners.
Goal: restore smooth, safe handwheel operation. Start by unplugging the machine, removing the access cover, and inspecting for bent parts, burrs, or a loose set screw. Tighten or replace fasteners as needed, clean the shaft, and apply a light film of sewing machine oil. Reassemble and test the handwheel. If visible damage exists, replace the handwheel or seek professional service.
Why Handwheel Problems Happen
Handwheel problems show up when the wheel becomes stiff, wobbly, or sticks during rotation. Common culprits include worn handwheel bushings, a loose or stripped set screw, lint and dust buildup in the pulley area, misalignment between the wheel and the shaft, or dried lubrication. According to Sewing Machine Help, many handwheel issues stem from neglecting regular maintenance or simple wear over time. Tiny amounts of lint can jam moving parts, and even minor burrs on the shaft can create resistance. The handwheel relies on precise tolerances; movement outside spec translates into resistance, roughness, or slippage when you turn it. Observing symptoms like sticky rotation, unusual noises, or the wheel catching helps narrow the cause. In some cases, the handwheel may look fine yet fail to engage the shaft due to a damaged grub screw or an eccentric bore. Before disassembly, unplug the machine and prepare a clean workspace to avoid accidents or additional damage.
Safety and Prep: What to Gather
Before you touch the handwheel, prioritize safety and organization. Unplug the machine and disconnect it from any power source. Remove jewelry, loose clothing, and tie back long hair to prevent entanglement. Work on a stable, padded surface to avoid scratches on the body or handwheel. Gather the essential tools: a small screwdriver set, an Allen wrench, sewing machine oil, lint-free cloths, and a soft brush. Keep track of tiny screws in a labeled container and avoid forcing parts apart. I always recommend taking photos at each stage so you can reassemble accurately. According to Sewing Machine Help, a methodical prep reduces the risk of losing parts or misaligning the wheel during reassembly.
Diagnosing Handwheel Symptoms: Stiff, Loose, or Wobbly
A handwheel should rotate smoothly with minimal effort. If it feels stiff, resists turning, or binds at certain points, that indicates internal friction or misalignment. A wobbly handwheel suggests a loose mounting, worn bore, or a bent shaft. A handwheel that turns elastically and then suddenly slips may point to a loose set screw or a damaged shaft collar. Document the symptoms with careful observation: note when resistance occurs, whether it’s constant or intermittent, and if there are accompanying noises like grinding or squeaking. This information helps identify whether the issue is a simple loose fastener, a lubrication problem, or something more serious like bearing wear. Sewing Machine Help emphasizes that accurate diagnosis saves time and minimizes the risk of additional damage during repair.
Common Causes and Quick Fixes
Quick fixes address frequently encountered problems without full disassembly. A loose set screw is a common culprit; tightening it with the correct driver often restores normal operation. Lint and dust buildup around the shaft or within the handwheel bore can create resistance; cleaning with a soft brush and a lint-free cloth usually helps. If the shaft is dry or corroded, a light application of sewing machine oil reduces friction and smooths motion. Warped or cracked handwheels require replacement, as attempting to repair such damage can lead to further issues. If any component shows visible wear beyond cleaning or tightening, plan for replacement or professional service. The goal is to restore proper alignment and lubrication while avoiding over-tightening that could strip threads or crack the wheel.
Step-by-Step Troubleshooting Overview

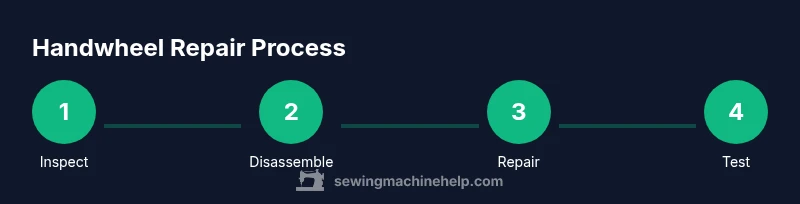

This section outlines a practical, methodical approach to diagnose and fix handwheel issues. Start with safety and prep, then access the handwheel, remove and inspect, clean and lubricate, reassemble, and finally test the operation. Each step is designed to be a single clear action with a brief rationale so you can follow along without guesswork. If at any point you encounter damage you cannot safely address, stop and seek professional repair. The process balances preventative maintenance with targeted repairs to extend the life of your machine.
Step-by-Step Troubleshooting Overview (continued)
We’ll walk through 10 focused steps that cover unplugging, disassembly, inspection, cleaning, lubrication, reassembly, and a final test. Each step includes a pro tip to avoid common mistakes and a rationale for why the action matters. While some models vary in construction, the underlying principles—safety, cleanliness, and controlled, incremental adjustments—apply across most household sewing machines.
Step-by-Step Troubleshooting Overview (continued, part 2)
Having a plan reduces stress and lowers the risk of losing small screws or misplacing parts. If your handwheel attaches with a set screw, you’ll verify its tightness and alignment, then reseat the wheel with the screw positioned in the correct groove. If your model uses a hub or bearing assembly, you’ll inspect those parts for wear. Finally, reassemble with care and verify that the handwheel turns smoothly through several cycles without binding.
Step-by-Step Troubleshooting Overview (continued, part 3)
This approach emphasizes gradual, testable actions. After each major action, turn the wheel by hand to judge whether the operation has improved. If difficulty returns, reassess the previous steps and confirm that you did not miss a misaligned part or a stubborn burr. Remember to test with the power off first and only power the machine after you have confirmed the handwheel moves freely and reassembled components are secure.
Step 1: Unplug and Prepare
Unplug the sewing machine and disconnect any power cords or foot pedal connections. Clear the workspace and lay down a soft mat to protect the machine’s surface. Confirm there are no residual tensions in belts or couplings that could cause sudden movement when the cover is removed. This step reduces the risk of electric shock and mechanical injury during repair. Safety first ensures you can work confidently and avoid unnecessary mistakes.
Step 2: Access the Handwheel and Cover
Remove the machine’s outer cover or wheel-access panel to expose the handwheel, shaft, and drive belt. Use the appropriate screwdriver to detach fasteners, keeping them organized so you can reattach them later. If your model has a knee lever or accessory mount, move these components out of the way carefully. Gaining access is essential for inspecting the wheel’s mounting and for any signs of wear or misalignment. Keeping a log of visible parts helps ensure accurate reassembly later.
Step 3: Remove and Inspect the Handwheel
Loosen the handwheel set screw carefully, then slide the handwheel off the shaft if possible. Inspect the bore, shaft, and hub for wear, burrs, or cracks. Look for a misaligned bore or a damaged retaining mechanism that could prevent proper seating. Document any damage before proceeding, so you can evaluate whether replacement is necessary. This inspection step is crucial to avoid missing hidden issues that could recur after reassembly.
Step 4: Clean, Lubricate, and Realign
Clean the shaft and bore with a lint-free cloth, removing all dust and film of old lubricant. Apply a light, even coat of sewing machine oil to the shaft and contact surfaces as recommended by your model’s manual. Realign the handwheel with the shaft, ensuring the wheel sits evenly and the set screw lines up with its original groove. Avoid over-lubricating, which can attract more dust and create residue in bearings. Cleanliness and precise alignment are key to a lasting fix.
Step 5: Reassemble, Test, and Fine-Tune
Slide the handwheel back onto the shaft and snug the set screw firmly without over-tightening. Reattach the cover or access panel securely. Manually rotate the handwheel several times to confirm smooth operation, then plug the machine back in and run a low-speed test. If there is any resistance, recheck alignment and lubrication, and look for any missed burrs or loosened components. A careful final test confirms you’ve completed a proper adjustment and that the handwheel functions safely.
Step 6: Preventive Maintenance to Keep Your Handwheel Running Smoothly
Establish a simple maintenance routine to keep the handwheel functioning well. Regularly dust the area to prevent lint buildup, re-lubricate the shaft on a schedule recommended by your machine’s manual, and inspect set screws for tightness during routine cleanings. Use only high-quality sewing machine oil and avoid heavy greases that can attract dust. Small, consistent maintenance pays off in a consistently smooth handwheel.
Step 7: When to Seek Professional Help
If the handwheel remains stiff, wobbly, or misaligned after performing the steps above, or if you notice visible cracks, significant wear, or abnormal noises, seek professional repair. Some issues involve internal bearings or shaft components that require specialized tools or parts. In these cases, a certified technician can perform a precise diagnosis and safe replacement, preserving your machine’s warranty and long-term reliability.
Tools & Materials
- Screwdrivers (Phillips and flat-head)(PH2 and precision slotted; use magnetic screwdriver to avoid dropping small screws.)
- Allen wrenches (hex keys)(Match shaft/set-screw size; common ranges are 1.5–3 mm depending on model.)
- Sewing machine oil(Light viscosity oil; use only recommended lubrication for your model.)
- Lint-free cloths(For cleaning the shaft, bore, and handwheel surfaces.)
- Soft brush or cotton swabs(Remove dust, lint, and debris from tiny crevices.)
- Replacement handwheel or shaft bushing (optional)(Only if you detect excessive wear or damage during inspection.)
Steps
Estimated time: 30-60 minutes
- 1
Unplug and Prepare
Disconnect power and move the machine to a stable, padded surface. Confirm there is no residual tension in belts or couplings, and clear the area of small parts before starting.
Tip: Always double-check power is off before touching any moving parts. - 2
Open Access Cover
Remove the cover or wheel-access panel to reveal the handwheel, shaft, and drive belt. Keep track of screws and set them in a labeled container for easy reassembly.
Tip: Take a quick photo of the setup before disassembly to guide reassembly. - 3
Inspect Set Screw
Check the set screw for looseness or damage. If loose, loosen only enough to reposition; overtightening can damage threads or the wheel.
Tip: If the screw shows wear, replace it before reassembly to prevent future slippage. - 4
Loosen Handwheel Retaining Screw
Gently loosen but do not remove the retaining screw more than needed to free the handwheel from the shaft if necessary.
Tip: Use the correct screwdriver size to avoid stripping the screw head. - 5
Remove Handwheel
Slide the handwheel straight off the shaft, noting any alignment marks for correct seating during reassembly.
Tip: Do not force the wheel; if it resists, reassess for burrs or misalignment. - 6
Inspect Shaft and Bore
Examine the shaft and handwheel bore for wear, burrs, or deformation. Capture any signs of damage to determine whether replacement is required.
Tip: Use a magnifier for tiny imperfections that could cause binding. - 7
Clean and Deburr
Clean the shaft and bore with a lint-free cloth, removing all debris and old lubricant. Lightly deburr any sharp edges without damaging the shaft.
Tip: Avoid aggressive filing that could alter tolerances. - 8
Lubricate and Realign
Apply a thin film of sewing machine oil to the shaft and any contact surfaces. Realign the handwheel so it sits evenly on the shaft before reattachment.
Tip: Wipe excess oil to prevent dust attraction. - 9
Reassemble and Test
Reseat the handwheel, tighten the set screw firmly without over-tightening, and reattach the cover. Manually rotate the wheel to verify smooth operation before powering on.
Tip: Test at low speed initially to confirm stability. - 10
Final Verification and Adjustment
Power the machine and run a short stitch test to ensure there is no binding and that the handwheel drives the mechanism correctly. If resistance persists, recheck alignment or consult a professional.
Tip: Keep replacement parts organized and label any model-specific differences for future maintenance.
Your Questions Answered
What are the signs that a handwheel needs repair?
Common signs include stiffness, wobble, binding, or unusual noises when turning the handwheel. If the wheel doesn’t seat properly or the shaft shows wear, further inspection is needed. A professional evaluation may be required for structural damage.
If the handwheel is stiff, wobbly, or makes strange noises, it’s time to inspect the mounting, bore, and shaft for wear.
Can I fix a handwheel without removing the belt?
In most cases, you will need to remove or loosen the access cover and any protective belt housing to inspect the wheel. For a thorough repair, belt removal is often necessary to access the shaft and set screws.
You’ll likely need to access the shaft, which usually means removing the cover and, if needed, loosening the belt housing.
Is lubrication safe for all handwheels?
Lubrication is safe when you use the correct sewing machine oil and apply lightly. Avoid heavy oils or lubricants not designed for machine parts, as they can attract dust and cause gumming.
Use a light sewing machine oil and apply just a small amount to the shaft.
What if the handwheel is cracked or bent?
A cracked or bent handwheel should be replaced rather than repaired, as structural damage will compromise safety and function. Check for warranty terms if applicable.
If the handwheel is cracked or bent, replacement is the safest option.
How do I decide between repair and replacement?
If the issue involves the wheel mounting, set screws, or lubrication that you can safely address, repair is reasonable. Visible wear, cracks, or shaft damage usually requires replacement to ensure reliability.
Choose repair for minor, safe fixes; replace if there’s visible damage or recurring issues.
What tools are essential for this repair?
You’ll need a basic screwdriver set, appropriate Allen wrenches, sewing machine oil, lint-free cloths, and a soft brush. Having a labeled tray for screws helps prevent loss during disassembly.
A small screwdriver, Allen wrenches, oil, and cleaning cloths are essential.
Do I need to recalibrate after reassembly?
Most handwheel repairs don’t require formal recalibration, but you should verify the wheel engages correctly and that the stitch timing remains accurate after reassembly. A test on a scrap fabric confirms readiness.
Test with a scrap fabric to ensure everything runs smoothly after reassembly.
How long should a typical handwheel repair take?
A straightforward fix can take 30–60 minutes, depending on access and the model. Complex wear or damage may require longer or professional service.
Most fixes take under an hour, but severe damage needs a pro.
Watch Video
The Essentials
- Unplug before starting to ensure safety.
- Inspect for loose screws and wear at the bore.
- Clean and lubricate the shaft for smooth movement.
- Realign and reassemble carefully to avoid misfit.
- If damage is visible, replace rather than repair.
