Goal: repair your sewing machine foot pedal so it provides smooth, variable speed control again. Start by unplugging the machine, inspecting the cord for wear, and testing continuity with a multimeter. This guide walks you through safe troubleshooting, common internal faults, and repair options, including wiring fixes or part replacements, with practical tips for home sewists.
Understanding foot pedal basics
The sewing machine foot pedal is more than a simple on/off switch; it acts as a variable resistor that communicates speed information to the machine's control system. If the pedal or its cord becomes worn, frayed, or loose, you’ll notice erratic speed, intermittent power, or a complete stall. According to Sewing Machine Help, a reliable pedal is essential for consistent stitch length and needle control. In most household machines, the pedal feeds power through a cord that terminates in a standard plug and a small multi-conductor connector at the machine end. This means problems can originate at the plug, the cable insulation, the control switch, or the pedal’s internal circuit traces. Recognize symptoms early: slow response, jumps in speed, or a tightening or loose feel when pressing the pedal. By understanding these basics, you’ll know where to look first during diagnostics and how to avoid unnecessary part replacements.
Common problems and quick diagnostics
Foot pedal issues usually fall into a few categories: worn or corroded connectors, damaged insulation, a fault in the pedal’s control circuitry, or a degraded switch. Start with the simplest checks: inspect the exterior for cuts, bulges, or scorch marks; unplug and examine the plug and machine socket for signs of wear; gently flex the cord near the connector to see if speed changes or the power cuts out. A quick continuity test with a multimeter helps confirm whether electricity reaches the pedal internals. If continuity is inconsistent or absent, suspect damaged wires or a failed switch. For mechanical wear, listen for unusual clicks or resistance when pressing the pedal slowly. Sewing Machine Help analyses indicate most pedal problems originate from flexible wires near the plug or from a failing switch, not the motor itself.
Safety and preliminary checks
Safety first: always unplug the machine before any inspection to prevent shock or accidental operation. Work on a dry, non-conductive surface and wear insulated gloves if you are touching exposed conductors. Do not use a damaged power cord; replace it before proceeding. Keep the pedal and cord away from moisture, heat sources, and pets during testing. If you must probe inside the pedal housing, use a non-conductive tool and keep track of tiny screws and washers. After any repair, re-tighten screws to avoid stress on wires and ensure a stable, vibration-free pedal connection. If you’re uneasy at any point, pause and seek help from a qualified technician.
Disassembly and inspection workflow
Disassembly should be done with care; the pedal housing usually snaps apart or uses small screws. Use a precision screwdriver to remove the back cover and inspect the internal switch, wiring harness, and any solder joints. Look for frayed insulation, loose connectors, or burnt contacts. Take photos before unplugging or disconnecting components so you can reassemble accurately. If you find a damaged wire, trim back cleanly, strip insulation, and re-terminate with proper connectors. Only attempt component removal if you have a clear understanding of the circuit and the right tools. If components appear intact but the issue persists, the problem may lie in the controller module inside the pedal, or in the machine’s own control board.
Replacing components and testing after repair
If a component shows visible damage, replace it with a compatible part. When in doubt, consult the pedal’s wiring diagram or the machine’s service manual to verify part numbers and connector pinouts. After reassembly, use a low-voltage test method before plugging the mains power back in: connect the pedal to the machine and gently press to see whether the speed responds smoothly through the full range. If the pedal still malfunctions, revisit the wiring and check for short circuits. Finally, test the entire setup on an old fabric sample to confirm stitch consistency and cadence before resuming normal sewing tasks.
Preventive maintenance and long-term care
To reduce future pedal problems, route the cord away from heat sources and pinch points; use a cable protector if you routinely work with a cluttered workspace. Periodically unplug and inspect the plug and socket for corrosion or build-up of dust; clean with a dry brush. Avoid yanking the cord when un-plugging—pull the plug, not the cable. Keep the pedal’s outer housing clean and free from moisture. If you replace the pedal switch or internal wires, use heat shrink tubing and appropriate crimp connectors to maintain a safe, durable repair.
Authority sources
- OSHA Electrical Safety Basics: https://www.osha.gov
- National Institute of Standards and Technology (NIST): https://www.nist.gov
- MIT Electrical Safety Resources: https://www.mit.edu
Tools & Materials
- Precision screwdriver set(Phillips #0-#2 and slotted bits for small screws)
- Multimeter(Test continuity and resistance in pedal circuits)
- Electrical tape(Insulate repaired wires and protect joints)
- Wire stripper/cutter(Prepare wires for re-termination)
- Soldering iron and solder(Use only if you need to replace internal wires)
- Heat shrink tubing(Insulate new connections after repair)
- Replacement pedal switch/connector(Use if you identify a faulty switch or connector)

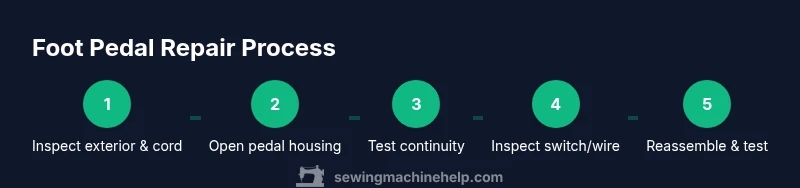

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Ensure the machine and pedal are completely disconnected from any power source. This prevents shocks and avoids unintentional activation during inspection. Confirm the machine’s off switch is not engaged and set the workspace to a dry, non-conductive surface.
Tip: Double-check the plug and socket for visible damage before proceeding. - 2
Inspect exterior and plug
Visually examine the pedal housing, cord insulation, and plug for cuts, kinks, or scorch marks. Wiggle the connector gently to see if the pedal responds intermittently, which suggests loose contacts. Document any wear for replacement decisions.
Tip: Photograph the plug orientation and color codes for reference. - 3
Open pedal housing
Remove screws to access the internal switch and wiring harness. Keep screws organized so reassembly is straightforward. Check for loose wires, burnt insulation, or broken solder joints.
Tip: Use a magnet to keep tiny screws from rolling away. - 4
Test continuity and inspect wiring
With the pedal opened, use a multimeter to verify continuity along the cord and at the switch contacts. Look for sudden resistance changes or open circuits. If you find a damaged wire, trim back and re-terminate with proper connectors.
Tip: Test from plug end to switch, then from switch to the pedal PCB. - 5
Repair or replace components
Replace damaged wires, damaged switch, or faulty connector sections as needed. If wires are intact, re-seat connectors and clean contacts. If soldering is required, perform a clean, tinned joint and insulate with heat shrink.
Tip: Avoid overheating components; work in a well-ventilated area. - 6
Reassemble and test
Carefully reassemble the pedal, re-insert screws, and reconnect to the sewing machine. Plug in and test the full speed range on a scrap fabric to verify smooth operation. If speed control is erratic, revisit the wiring and connections.
Tip: Test with light pressure first to avoid sudden starts.
Your Questions Answered
Is it safe to repair a sewing machine foot pedal at home?
Yes, you can repair at home if you follow safety steps: unplug the machine, work on a dry surface, and use insulated tools. Do not work on a damaged power cord. If you’re unsure, seek professional help.
Yes, you can repair at home if you follow safety steps; unplug and use insulated tools.
What are common signs a foot pedal needs repair?
Common signs include erratic speed, intermittent power, a sluggish or sticky pedal, unusual noises, or a complete loss of response. Inspect the cord and plug first, then test continuity.
Erratic speed or no response are common signs.
Can I repair without soldering?
Often yes. Many fixes involve re-seating connectors, replacing damaged wires, or swapping the switch. Soldering is only needed for broken wires or joints that cannot be crimped.
Yes, you can often repair without soldering by re-seating connectors.
Should I replace the pedal or the machine's motor?
Most pedal issues are with the pedal’s switch or wiring rather than the motor. If problems persist after pedal repair, have a technician evaluate the machine’s control board.
Pedal problems are usually pedal or wiring related.
How long does foot pedal repair take?
Repair time varies with complexity. Simple wire or switch fixes may take under an hour, while internal component replacement can require more time and testing.
It depends on the issue; some fixes take under an hour.
Where can I buy replacement parts safely?
Buy from reputable brands or authorized dealers. Confirm compatibility with your model by checking the part numbers and connector types before purchasing.
Buy from reputable dealers and verify compatibility.
Watch Video
The Essentials
- Unplug before any work
- Check wiring and switch first
- Test across full speed range after repair
- Use proper insulation on all joins
- When in doubt, seek professional help
