Kenmore Sewing Machine Repair: Step-by-Step Guide

Diagnostic overview for Kenmore sewing machines

According to Sewing Machine Help, a methodical diagnostic workflow saves time and reduces the risk of causing new damage. Start with a visual check: power switch, plugged cords, and a clear work surface. Listen for unusual motor sounds, inspect the belt for cracks or looseness, verify thread path continuity, and examine the bobbin area for lint buildup. Document every symptom in a quick list—skip stitches, thread bunching, fabric snagging, or sudden stops. This high-level map guides you to the right subsystem (drive, hook, tension, or lubrication) and minimizes unnecessary disassembly. For home sewists, keeping notes helps when you later search for model-specific fixes or parts diagrams. Finally, verify your Kenmore model’s user manual to confirm part locations and recommended lubricants. The Sewing Machine Help team stresses starting with the simplest checks before deeper disassembly, to avoid damage and wasted effort.

Why model variability matters for Kenmore repairs

Kenmore sewing machines span several decades and share core mechanical principles, yet model-specific routing for belts, pulley systems, and needle mechanisms can vary. This means a solution that works on one Kenmore might not apply to another. When diagnosing, always locate the exact model number on the machine and consult the official manual or a reputable parts diagram. The Sewing Machine Help analysis, 2026, notes that most model-specific issues involve belt wear, bobbin misalignment, or thread path deviations rather than exotic faults. By mapping symptoms to the right subsystem based on the model, you can tailor your repair plan, source the correct parts, and avoid guessing games that waste time.

Essential tools and safety practices

Repair work should prioritize safety and cleanliness. Before touching anything, unplug the machine, remove the foot pedal, and clear the area of jewelry or loose clothing. Gather a basic toolkit: screwdrivers (Phillips and flat-head), needle-nose pliers, tweezers, a lint brush, a soft cloth, and a light sewing-machine oil. Keep the manual handy for model-specific lubrication points and screw sizes. Wear safety glasses if you’re dealing with sharp components or small springs. Working on a lighted, stable surface reduces the risk of slipping parts or losing screws. Remember: if something feels stiff or plasticky, do not force it—check for lint, broken springs, or bent components that could worsen damage.

Step-by-step disassembly overview

A careful, incremental approach minimizes risk. Begin by removing the needle and presser foot, then take out the throat plate to expose the bobbin case. Photograph each stage so reassembly is straightforward. Keep screws organized, using labeled containers or magnetic trays. Do not pry on plastic housings; instead, work with gentle leverage to release clips. As you gain access to the drive belt, pulley, and hook mechanism, note any unusual wear, misalignment, or residue that could affect timing. This overview sets the stage for targeted inspections without rushing into a full teardown.

Inspecting moving parts: belt, pulley, needle bar, and hook

Careful inspection of each critical component helps identify the root cause. Look for cracks on the drive belt, glazing or fraying along the belt edge, and looseness at the motor pulley. Inspect the needle bar for smooth vertical travel and ensure the needle clamp is secure. Examine the hook and bobbin race for lint, thread fragments, or rough surfaces that snag fabric. If a belt shows wear or slack, plan for a replacement using a belt compatible with your Kenmore model rather than a generic part. A clean, dry surface helps you detect minute misalignments that can cause skipped stitches or thread breaks.

Cleaning and lubrication: where and how much

Cleaning should come before lubrication. Use a soft brush or compressed air to remove lint from the bobbin case, feed dogs, and shuttle area. Dampen a lint-free cloth with a tiny amount of machine oil and wipe only the places recommended in the manual—over-oiling can attract more lint and attract dust. Avoid oiling onto the belt, belt pulleys, or electronic components. After cleaning, rotate the handwheel by hand to check for smooth movement and listen for any gritty or sticky sensations that indicate residual debris. Refrain from using household lubricants, which can degrade plastics and rubber.

Troubleshooting by symptom: common fixes you can perform

Common signs point to specific subsystems: skipped stitches often involve tension or needle issues; thread bunching can indicate a mis-threaded path or bobbin misplacement; fabric pulls may reflect feed dog or presser foot pressure problems. Approach each symptom with a targeted check: rethread the upper and lower path, verify bobbin orientation, inspect the needle for damage and correct size, and clean the bobbin area thoroughly. If the issue persists, inspect the belt and motor connections, ensuring there are no loose screws or worn components. Document fixes and retest on scrap fabric to confirm improvement before completing the repair.

Testing the repair: stitch quality and fabric tests

Testing should be conducted on scrap fabric that matches the project’s density and fiber. Start with straight stitches, then test zigzag and decorative stitches if available. Check stitch length, tension on both top and bottom threads, and ensure there’s no bird-nesting or thread shredding. If test results are unsatisfactory, re-check threading, needle type, and needle insertion height. Keep a log of test results and adjustments to track what works best for your Kenmore model. This iterative approach helps you fine-tune tension and timing without risking fabric damage.

Preventive maintenance to extend Kenmore life

Preventive steps are easier than repeated repairs. Schedule regular cleaning, keep lint swept away from the bobbin area, and replace worn belts or feet as needed. Oil the machines at the recommended points and avoid over-oiling, which can attract dust. Store the machine in a dry, cool environment and cover it to prevent dust buildup when not in use. Periodic checks of electrical cords, foot pedal, and switches help identify safety concerns early. Following these routines reduces the odds of sudden failures and extends the life of your Kenmore sewing machine.

Quick-start repair checklist and model-specific notes

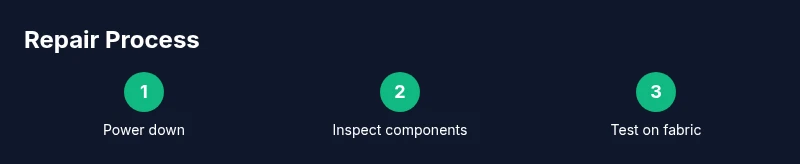

Use a two-page quick-start checklist: (1) power off, unplug, and remove accessories; (2) rethread and inspect the bobbin; (3) check belt tension and path; (4) clean lint from critical areas; (5) oil only at recommended points; (6) test on scrap fabric; (7) reassemble with care and test again. Always refer to your Kenmore model’s manual for torque values, screw sizes, and lubrication points to avoid over-tightening or over-oiling. If you encounter a part that shows excessive wear, consider replacing it with a model-compatible component rather than attempting a workaround, which could compromise performance. The final test should show consistent stitches with no abnormal noise or fabric distortion.

AUTHORITY SOURCES

• https://extension.illinois.edu
• https://extension.uga.edu
• https://www.osha.gov

Beyond repair: knowing when to seek professional service

If you encounter repeated jams, electrical issues, or timing malfunctions that resist typical troubleshooting, it may be time to seek professional service. A qualified technician can perform timing adjustments, gear inspections, or electronics testing with calibrated tools. The Sewing Machine Help team recommends evaluating the cost of professional service against the machine’s value and age to decide whether a repair is worth pursuing. Document symptoms and parts replaced to provide a clear history for the technician.
