Singer Sewing Machine Electrical Cord Replacement Guide
Learn to safely identify, replace, and test the singer sewing machine electrical cord. This practical, step-by-step guide covers compatibility checks, essential tools, safety precautions, and testing tips for home sewists.
You will learn to safely identify, replace, and test the singer sewing machine electrical cord. This guide covers safety, tool needs, compatibility checks, and a clear, step-by-step replacement process you can perform at home. By following these steps, you reduce shock risk and keep your machine running smoothly. It also explains common mistakes to avoid.
Understanding the singer sewing machine electrical cord
The electrical cord on a Singer machine is more than a simple wire. It carries mains voltage from the wall to the power switch and ultimately to the motor. Over time, insulation can wear, strain relief can loosen, or connectors inside the foot pedal area can corrode. Recognizing the cord's role helps you decide whether replacement is necessary. The singer sewing machine electrical cord may be two-prong or three-prong depending on the model and your country’s electrical standards. Always verify the plug type before buying a replacement. If you’re unsure, consult your machine’s manual or a reputable guide. For home sewists, understanding cord function reduces the risk of electric shock and short circuits during maintenance. When replacing, aim to preserve the original wiring gauge and connector types to ensure safe operation and proper grounding. Remember that the power cord interfaces with the machine’s internal switch and external pedal, and any fault can cause intermittent operation, unexpected shutdowns, or overheating. In all cases, work with the machine unplugged and on a non-conductive surface to prevent accidents. If the cord shows exposed copper, cracking insulation, or melted spots, treat it as a priority repair.
Assessing wear and damage on the singer sewing machine electrical cord
Damaged cords are a leading cause of electrical faults in household sewing machines. Look for frayed insulation, exposed conductors, kinks, or melted areas near the plug or strain relief. A cord that feels warm to the touch after use or emits a faint burning smell is a red flag. Check the plug prongs for looseness or corrosion and inspect the area where the cord enters the machine body. If you notice any of these signs, do not continue using the machine. A damaged cord can cause electric shock, short circuits, or fire. When in doubt, err on the side of caution and replace rather than repair. If you have a multimeter, test continuity between the plug and the machine’s input; an open circuit indicates the cord inside the insulation may be damaged. Always unplug before testing. Document any wear and plan for a replacement to avoid downtime.
Choosing the right replacement cord for your Singer model
Selecting the correct replacement cord is essential for safety and performance. Start by identifying whether your machine uses a two-prong or three-prong plug, and confirm the voltage rating on the cord or manual. Measure the existing cord length to ensure the new cord will reach the power source and be easy to route without strain. Look for a cord with the same gauge (thickness) and insulation type as the original to prevent overheating. If your machine is used internationally, verify the plug compatibility with your outlet; never force-fit a cord with the wrong plug type. In some cases you may need a cord with a separate ground wire, particularly for metal-bodied machines. Always purchase from reputable sources and keep the model number and manual handy for reference. The goal is a cord that matches the original electrical specifications while providing a reliable ground connection and strain relief to protect the interior wiring.
Safety considerations and preparation before you start
Safety first: unplug the machine from the wall outlet and disconnect the foot pedal from power if applicable. Work on a non-conductive surface and remove any jewelry that could catch or conduct electricity. Use insulated tools and wear safety glasses to protect against small metal fragments when removing screws. Keep screws and small connectors organized in labeled containers. If you must work near water or damp surfaces, postpone the repair. Always confirm that the power is completely disconnected by attempting to power on the machine after unplugging. If you feel unsure at any point, stop and seek professional guidance. Finally, check your local electrical standards; some regions require a grounded plug for certain appliances. Following these precautions minimizes the risk of electric shock and equipment damage.
Post-replacement testing and maintenance tips
After connecting the new cord, reassemble the casing and ensure the strain relief grips the cord firmly to prevent movement that could dam age connections. Plug into a known-good outlet and perform a simple test without fabric: turn on the machine, run a brief idle cycle, and then stitch a scrap piece of fabric to confirm stable operation. If you notice intermittent power, arcing, or unusual smells, immediately disconnect and recheck the connections. Keep a small spare set of fuses or fuses appropriate for your region (if applicable) and store the new cord in a dry location away from moisture. Periodic visual checks every few months can catch wear before it becomes a problem, especially if the machine is used heavily. By maintaining the cord and its connections, you prolong the life of your Singer sewing machine and reduce the likelihood of electrical faults.
Quick-start cheat sheet for cord replacement
- Confirm cord compatibility (plug type, voltage, gauge)
- Unplug and discharge all power sources before work
- Inspect, label, and disconnect old wiring carefully
- Use correct insulation and secure strain relief
- Test after assembly with a fabric scrap
- Store the spare parts and tools in an organized workspace
Tools & Materials
- Replacement Singer sewing machine electrical cord(Model compatibility; verify plug type (2-prong or 3-prong) and voltage rating)
- Small screwdriver set (Phillips and flat-head)(For removing screws to access the cord entry)
- Wire cutters/strippers(Trim and prepare connections cleanly)
- Electrical tape or heat-shrink tubing(Insulate connections and protect from moisture)
- Multimeter (optional)(Check continuity and insulation resistance if available)
- Soldering iron and solder (optional)(Only if you need to replace inline connectors)
- Safety gloves and eye protection(Prevent shocks and injuries during replacement)
- Clear, dry workspace with good lighting(Helpful for organizing parts and avoiding mistakes)

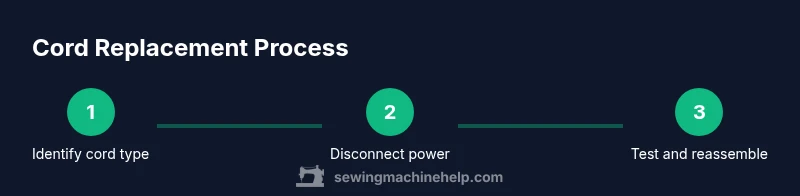

Steps
Estimated time: 25-40 minutes
- 1
Power down and unplug
Fully disconnect the machine from the wall outlet and unplug the foot pedal (if present). This ensures there is no live current while you work. Take a moment to discharge any residual power by waiting a few seconds before proceeding.
Tip: Double-check the outlet with another device to confirm it’s off before touching wiring. - 2
Access the cord entry
Remove the machine’s back cover or seek access via the service panel to reach the internal cord connection. Keep screws in a labeled container and avoid forcing panels apart. This step exposes the strain relief and the cord’s terminal connections.
Tip: Photograph each connection before disconnecting so you can reassemble accurately. - 3
Disconnect the old cord
Carefully detach the old cord from its terminals, noting which wires connect to which points. If necessary, label wires with tape. Check for any damaged terminals or melted insulation at the cord’s entry point.
Tip: If a connector is stubborn, apply a small amount of contact cleaner and pause to avoid damaging wires. - 4
Prepare the replacement cord
Inspect the new cord for damage, then trim and strip the ends as needed to fit your terminal blocks. Make sure the stripped length is enough for a secure connection but not so long it risks shorting against metal.
Tip: Use heat-shrink tubing to cover exposed conductors for added insulation. - 5
Connect the new cord
Attach the new cord to the same terminals as the old one, ensuring correct polarity if applicable. Re-seat all connections firmly and secure with any supplied clamps or strain reliefs.
Tip: Avoid loosening screws after installation; use a screwdriver snug fit to prevent vibration over time. - 6
Reassemble and test
Replace the cover, plug the machine into a grounded outlet, and perform a light test on fabric scraps. Observe for smooth operation, no unusual noises, and no overheating. If everything passes, continue with a full test run.
Tip: Keep a flashlight handy to inspect connectors during the first power-on test.
Your Questions Answered
Can I replace the cord myself, or should I hire a technician?
Cord replacement is doable for many hobbyists, provided you follow safety steps and use the correct replacement cord. If you encounter complex wiring or suspect damage beyond the cord, seek a professional technician. Always unplug, test, and recheck your work before using the machine.
Yes, you can replace the cord yourself if you take proper safety steps and use the right cord. If you find complex wiring or suspect more damage, a professional is recommended.
How do I identify the correct replacement cord for my Singer model?
Check your model number and plug type (two-prong or three-prong). Confirm voltage and gauge on the original cord or manual, and purchase a cord that matches those specifications. If in doubt, consult the manual or refer to a reputable repair guide.
Look up the model number, plug type, and voltage on the original cord, then buy a cord with matching specs.
Is testing required after replacement?
Yes. After installation, reassemble, plug into a grounded outlet, and perform a slow stitch or fabric test. Check for heat, unusual smells, or intermittent power. If issues arise, power down immediately and recheck all connections.
Absolutely. Test with a slow stitch and look for any heat or odd smells; recheck connections if something seems off.
What safety precautions are essential for cord replacement?
Always unplug the machine, work on a non-conductive surface, and wear eye protection. Use insulated tools and avoid metal jewelry. Ensure the outlet and power source are dry and proper ground is available.
Unplug first, work on a non-conductive surface, wear protection, and keep the area dry.
What should I do if the plug type differs from my outlet?
Do not force-fit a different plug. Use a cord with the correct plug type for your outlet or install a proper adapter if required by local electrical codes. If unsure, consult a licensed electrician.
Don’t force-fit a different plug; use the right cord or seek electrical help.
Watch Video
The Essentials
- Identify model compatibility before buying.
- Unplug and inspect for damage prior to replacement.
- Choose the correct plug type and cord gauge.
- Secure strain relief and insulate all connections.
- Test with fabric scraps and observe for issues.
