Brother Sewing Machine Threading Bobbin: Practical Guide

Understanding the Brother Bobbin System

The Brother bobbin system is designed to work with a light-weight bobbin thread and a precise tension path that interacts with the top thread. For many home sewists, the most frustrating problems start when the bobbin is installed incorrectly or when the thread is not threaded through the tension mechanism properly. According to Sewing Machine Help, mastering the bobbin is essential for consistent stitches and reliable seam quality.

In Brother machines, the bobbin sits in a case that often has a rotor or cover that guides the thread. The thread should unwind in the correct direction and under the right tension. If the bobbin is wound unevenly or has lint, the stitch can appear too loose or too tight. The goal is a smooth, even baseline stitch that forms correctly at the needle. It’s worth noting that some models have front-loading, drop-in bobbins, while others use a side-load mechanism. Always consult your model’s manual for the exact steps, but the general principles remain the same: ensure clean bobbin housing, correct insertion, and proper thread flow.

This section lays the groundwork for reliable bobbin threading, highlighting how the bobbin interacts with tension and thread path. A solid understanding here reduces the number of troubleshooting steps you’ll need later and helps you diagnose issues quickly when stitches misbehave.

How Thread Path and Tension Interact with the Bobbin

The combined action of the top thread and bobbin thread creates the lock-stitch on most home sewing machines. If either thread is too tight or too loose, you’ll see looping on the underside or a skipped stitch on the top. The bobbin thread tension is typically adjusted via the bobbin case spring or a small screw on the case. Correct threading allows the bobbin thread to rise through the needle plate and form a balanced stitch. In many Brother models, the thread should be guided through the tension mechanism and then fed smoothly into the bobbin housing. If you notice snarls or loops beneath the fabric, rethread both the bobbin and the upper thread, making sure every guide is clean and unobstructed. A clean, controlled path is the first line of defense against tension troubles.

Tools and Materials You'll Need for Bobbin Threading

While the actual threading steps are straightforward, having the right tools on hand makes the process smoother. Gather a clean, well-lit workspace, good-quality thread for both the bobbin and needle, and a few basic aids:

• A compatible bobbin for your Brother model (the correct size and type)
• A spool of the top-thread material suited to your fabric choice
• Replacement bobbins (the model-compatible kind)
• A small screwdriver or tweezers (if your model requires access to the bobbin case)
• A lint brush or compressed air for cleaning the bobbin area
• Your sewing machine manual (for model-specific guidance)

With these items ready, you’ll shorten setup time and reduce the chance of mis-threading.

Common Issues and How to Fix Them

Mismatched tension, incorrect bobbin orientation, or a lint-filled bobbin area are the most common culprits behind bobbin problems. If you see loops on the bottom, rethread the bobbin and ensure the case spring is free of lint and properly seated. If stitches look uneven or the machine skips stitches, double-check that the bobbin winds evenly and that the thread feeds in the correct direction. Sometimes a quick cleaning of the bobbin area plus re-threading the top thread resolves many issues. Remember: always test on scrap fabric after any adjustment to confirm tension and stitch balance before sewing on your actual project.

For beginners, it’s easy to assume the issue is the needle, but bobbin setup is often at fault. Confirm the needle is properly installed and that the presser foot is lowered to engage the feed dogs before testing. A patient, methodical approach reduces the risk of damaging fabric or breaking needles.

Model-Specific Considerations for Brother Machines

Brother offers a variety of models with different bobbin types — from front-loading to drop-in and side-loading variants. The exact threading path and tension adjustment can vary slightly from machine to machine. Always refer to your model’s manual for the precise orientation of the bobbin, the direction in which the thread should unwind, and how the tension mechanism should be engaged. If you’ve recently changed models or upgraded, re-familiarize yourself with the threading steps for that specific machine. The core principles remain the same: clean bobbin housing, correct insertion, and proper thread flow through guides and tension areas.

If you notice model-specific quirks (for example, a slightly different spring tension or an alternate thread guide), note them in a quick reference sheet so you won’t forget during busy sewing sessions.

Maintenance Habits to Prevent Bobbin Problems

Regular maintenance prevents many bobbin threading problems. Clean lint from the bobbin area at the end of each project, especially after sewing with textured or fluffy fabrics. Use a small brush or a blower to remove lint without pushing debris further into the housing. Store spare bobbins and threads in a clean container to avoid dust and tangling. Periodically check the bobbin case for wear or damage; a worn spring or cracked case can alter tension and cause inconsistent stitches. By building a simple routine—clean, inspect, and re-thread—you’ll maintain optimal performance and reduce frustrating bobbin snags.

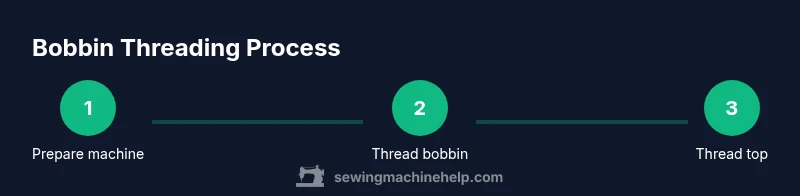

Quick-Start Checklist for Beginners

If you’re new to Brother sewing machines, this checklist will speed up your learning curve:

• Power off and unplug before opening any covers
• Remove the needle if it blocks access to the bobbin area
• Open the bobbin cover and take out the bobbin for inspection
• Clean the bobbin housing and guides of lint or thread scraps
• Rewind the bobbin evenly and insert in the correct orientation
• Thread the top path and confirm the needle thread is engaged
• Test on scrap fabric and adjust tension as needed
