Put the Bobbin in a Sewing Machine: Step-by-Step Guide

Understanding Bobbins and Their Role

The bobbin is the small spool that supplies the lower thread for your stitches. In most machines, the bobbin works in tandem with a tension mechanism to create balanced stitches. Understanding where the bobbin sits and how it feeds the thread helps prevent common issues like loose stitches, skipped stitches, or thread nests. According to Sewing Machine Help, the bobbin type and insertion method can vary by model, so it's important to know whether your machine uses a drop-in bobbin or a dedicated bobbin case. This section will clarify how the bobbin interacts with the tension discs and why correct orientation matters. You’ll also learn how to identify when a bobbin is wound correctly and how to avoid over-tightening the case, which can cause friction and poor stitch formation.

Different Bobbin Types and Placement

Sewing machines use two broad categories of bobbins: drop-in (or front-load) bobbins and those that require a separate bobbin case. Drop-in bobbins sit directly in a circular or square cavity, with a thread path that moves freely under the needle plate. Bobbin cases hold the bobbin and may include a spring-loaded plate that keeps tension consistent. The placement method affects how you thread the bobbin and the path the thread takes as it feeds into the lower tension mechanism. Always consult your manual to confirm the exact placement for your model, as size, notch orientation, and rotation direction can differ. When you learn how to put the bobbin in a sewing machine, you’ll know whether you need to place the bobbin clockwise or counterclockwise before sealing the cover.

Preparing Your Machine for Bobbin Insertion

Before touching the bobbin area, ensure the machine is powered off and unplugged. Raise the presser foot and turn the handwheel toward you to bring the needle to its highest position, so you can see the thread path clearly. Clean the bobbin area to remove lint and stray threads that could snag the thread. If your model requires removing a cover plate, do so gently with the appropriate screwdriver. A clean, staged workspace makes locating the bobbin slot easier and reduces the chance of dropping small pieces.

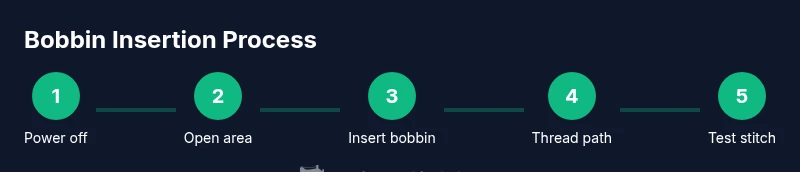

Step-by-Step: Inserting the Bobbin (Drop-In and Case)

1. Power off and prepare: Unplug the machine, raise the needle, and ensure the bobbin area is clear. This safety step prevents accidental needle movement while you work. Ensure you have a good light and a flat surface to work on.

2. Open the bobbin area: Lift or slide the bobbin cover to expose the area. If your model has screws, use a small screwdriver and keep track of fasteners. This exposes the bobbin housing for easier access.

3. Remove the old bobbin: If a bobbin is already installed, unwind the thread and lift it out gently. Disconnect any loose threads that may snag the new bobbin. If the bobbin is a case type, remove the case carefully without forcing.

4. Insert the new bobbin: Place the bobbin into the case or the drop-in cavity according to your model’s orientation, and ensure it rotates as you pull the thread. If there’s a spring-loaded tension, set it to the recommended position.

5. Thread the bobbin and take-up path: Guide the thread through the bobbin slot and into the take-up path. Make sure the thread is taut and follows the designed route toward the needle plate.

6. Bring up the bobbin thread: Hold the upper thread and turn the handwheel toward you to snag the bobbin thread, then pull both threads to the back under the presser foot. Close the cover and re-thread the upper thread if needed.

7. Test and adjust: After closing the cover, sew a few stitches on scrap fabric to verify tension. If the bottom stitches show loops, recheck the bobbin orientation and path.

Common Mistakes and Troubleshooting

One of the most frequent issues when learning how to put the bobbin in a sewing machine is installing the bobbin backwards or pulling the thread in the wrong direction. This leads to tangles, bird-nesting, or loose bottom stitches. Other common mistakes include using an incompatible bobbin, failing to thread the take-up lever, or forgetting to pull the thread to the back after winding. If you notice tension problems, verify that the bobbin case sits properly and that the thread path is clear. Regular cleaning of lint and thread bits helps prevent jams and makes subsequent bobbin changes easier.

Maintenance and Care After Bobbin Insertion

After you finish inserting the bobbin, take a moment to clean the surrounding area. Dust and lint can accumulate quickly during sewing, especially if you are using thicker threads or denim. A quick wipe with a lint-free cloth and a small brush can prevent buildup. If your machine glides less smoothly, check the bobbin area for any tiny thread fragments that might snag the path. Finally, store spare bobbins in a dry, dust-free container to keep them unwound and ready for your next project.
