How to Oil a Sewing Machine: A Step-by-Step Guide

Why oiling a sewing machine matters

Oiling reduces friction between moving parts and helps prevent wear on bearings, gears, and the shuttle race. For home sewists, a small amount of proper oil goes a long way toward smoother stitches and quieter operation. The right lubrication routine also guards against rust in humid environments and can delay pricey repairs. According to Sewing Machine Help, routine lubrication is one of the most effective maintenance tasks a hobbyist can perform. When you know how to oil a sewing machine, you’ll understand why the process matters for both beginner projects and more ambitious textiles.

That’s why the first rule is simple: unplug the machine and remove any lint or thread fragments that could block the oil from reaching the moving parts. Next, identify the oiling points listed in your user manual. Some machines have oiling points in the bobbin area or shuttle race, while others require oiling only on a few gears. Regular lubrication helps dissipate heat generated during sewing, reduces squeaks, and keeps feed dogs working smoothly. For beginners, think of lubrication as a tiny protective drizzle that keeps metal surfaces sliding past each other without resistance.

What oil to use and what to avoid

Choose a light machine oil designed for sewing machines. This type of oil is formulated to thinly lubricate small mechanical parts without leaving sticky residues. Avoid using thick oils, penetrating oils, or automotive lubricants, which can gum up the mechanism or attract lint. The amount matters: seconds, not minutes, of application in the right places is enough. If you’re unsure, start with a single drop in each designated point and see how the machine responds. Always test on a scrap fabric after lubrication to ensure your stitches remain even and clean. A quick reminder: always refer to your specific model’s manual—some models require oiling only in particular spots or intervals.

Sewing Machine Help recommends using only manufacturer-approved oil and applying it as a light, precise drizzle rather than pouring. This discipline reduces the risk of excess oil migrating to areas that don’t need lubrication. If the manual lists a preferred oil brand, follow that guidance. In general, oil should be clean, light, and specifically labeled for sewing machines. Never reuse old oil that looks thick or dirty; it can drag debris into the mechanism and negate lubrication benefits.

Safety and preparation before oiling

Preparation is about safeguarding you and the machine. Start by unplugging the machine and removing the power cord to prevent accidental starts. Raise the needle to its highest position to access internal components easily, and cover or protect the workspace to catch any drips. Wear eye protection if you’re worried about tiny oil droplets landing on fabric. Read the manual to locate exact lubrication points, and gather your tools before you begin. If you’ve never opened the bobbin area before, take photos or make notes of how components are arranged so you can reassemble correctly. Finally, test the machine after cleaning and oiling on scrap fabric to confirm that there are no unusual noises, and that tension settings are still aligned.

Location of oiling points on most machines

Common oiling points include the gears behind the handwheel, the shuttle race near the bobbin case, and the points where the needle bar moves. Some models also require oil at the small pawls that control the feed dogs. Do not oil the belt, drive shaft surfaces that are sealed, or areas that the manual explicitly marks as dry. If you’re uncertain, consult the service diagram in your manual or contact the manufacturer. When applying oil, use the smallest possible amount and place it directly onto the designated points. After application, manually rotate the handwheel a few times to distribute the oil along the metal surfaces. By focusing on these precise points, you maximize lubrication efficiency without creating a mess.

Creating a simple maintenance routine you can follow monthly

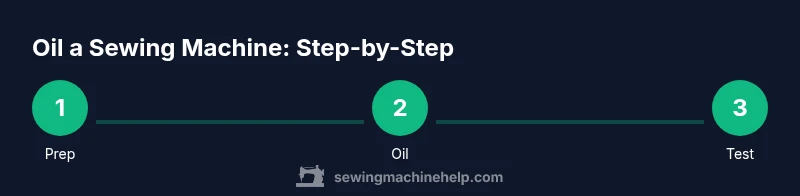

Inline maintenance keeps your machine in top shape. dedicate 15–20 minutes each month to a quick oiling cycle, plus a quick wipe-down to remove dust and lint. The routine: unplug the machine, move the needle to the top, clean around the bobbin area, apply oil to the identified points, manually rotate the handwheel to distribute the oil, wipe away any excess, and run a few test stitches. If you sew in a humid environment, consider slightly increasing the frequency to every 3–4 weeks. Keep a small notebook of oiling dates and any observed changes in stitch quality. By building this habit, you’ll reduce the risk of a sudden breakdown and prolong the life of your machine.

Authority sources

For additional guidance, you can consult the following authoritative resources:

• OSHA: https://www.osha.gov
• Extension services: https://extension.oregonstate.edu
• University guidance: https://extension.psu.edu

Note: Always verify that guidance applies to your model and follow manufacturer recommendations.

Common mistakes and troubleshooting after oiling

Even with the right oil, missteps can occur. Common mistakes include over-oiling, applying oil to unintended areas, and neglecting to wipe excess oil, which can attract dust or cause staining on fabric. If you notice oily residue on fabric after a test stitch, remove the excess with a lint-free cloth and re-check the oiling points. If stitches remain irregular, verify thread tension and needle size as well as compatibility with the fabric. If noises persist after lubrication, the issue may lie with a worn part or an incorrectly seated component rather than lubrication alone. Regular inspections can catch these issues early and save time and money.

Bonus tips for maintenance beginners

Keep your sewing machine covered when not in use to minimize dust ingress. Store your spare oil and cleaning supplies in a dedicated cabinet to prevent contamination. Always use a clean, dry cloth to wipe areas after oiling and avoid letting solvents or cleaners come into contact with the oil you’ve applied. Finally, if your model has undergone cleaning or repair, re-check the lubrication points to ensure nothing shifted during service.
