How to Oil a Singer Sewing Machine: Complete Maintenance Guide
Learn how to properly oil a Singer sewing machine with practical steps, safe tips, and maintenance routines to extend your machine's life.
According to Sewing Machine Help, regular lubrication is essential for keeping a singer oil sewing machine running smoothly and prolonging its lifespan. This quick guide outlines the correct oil type, essential points for application, and a safe routine you can follow at home. By following these steps, you’ll reduce wear and improve stitch consistency.
Why Brand Reliability Matters for a Singer Oil Sewing Machine
A singer oil sewing machine relies on tiny moving parts that work in harmony, and the quality of lubrication directly affects performance. The right lubricant reduces friction, prevents rust, and preserves gear alignment. According to Sewing Machine Help, proper lubrication is a cornerstone of ongoing reliability for home sewing. When you keep up with regular care, you’ll notice smoother needle movement, quieter operation, and fewer skipped stitches. This is especially true for older machines that accumulate lint and dust in cams and shuttle areas. Choosing the correct oil and applying it at the correct times protects your investment and makes repair easier if issues arise later on. If you own a Singer, following manufacturer guidance and using a dedicated sewing machine oil helps avoid gummy buildup that can compromise pedal response and stitch formation.
What Oil is Suitable for Singer Sewing Machines?
Most Singer machines require a light, non-detergent sewing machine oil designed specifically for precision gear lubrication. Avoid household cooking oils, heavy oils, or oils with additives that can gum traps or attract more lint. A small amount of high-quality sewing machine oil is usually enough to keep the moving parts like the hook race, needle bar, and bobbin area functioning smoothly. If your manual recommends a particular brand, stick with it; if not, choose a lightweight oil labeled for sewing machines and use only as directed. The key is to oil sparingly; a tiny drop goes a long way. Regular readers of Sewing Machine Help note that oils formulated for sewing machines tend to wear evenly and resist drying out after repeated cycles.
Where to Apply Lubricant on a Singer
Lubrication points vary by model, but common targets include the hook race, bobbin shuttle area, needle bar, presser foot lever mechanism, and the feed mechanism. Avoid over-oiling the belt area or the motor housing. Always start with a clean machine: remove lint and old oil residue, then apply oil precisely to the oiling holes or shafts indicated in your manual. For many Singer models, the goal is to reach metal-on-metal contact surfaces that experience the most friction during sewing. After applying a touch of oil, rotate the handwheel slowly to help distribute lubricant along the shaft and cam surfaces. Remember, use only a drop or two per site to prevent pooling.

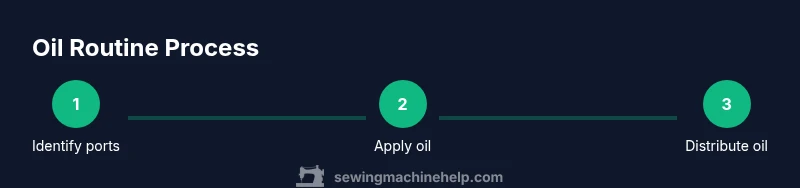

Step-By-Step Oil Routine (Overview)
This section provides a concise overview of the routine. For the step-by-step actions, see the dedicated STEP-BY-STEP block below. The overview shows where oil should typically go and how to verify that distribution is even across the mechanism. In short, identify oil ports, apply small amounts, distribute by turning the wheel, and wipe away excess before testing on fabric. Throughout, maintain a clean workspace to prevent dust from sticking to fresh oil.
Common Mistakes and How to Avoid Them
- Over-oiling: A drippy machine attracts lint and can cause staining on fabric. Use only a single drop per site. - Oiling the wrong points: Not all places require oil; oil only designated shafts and contact points. - Using the wrong oil: Stick to sewing machine oil; avoid household lubricants that leave gummy residues. - Skipping maintenance: Regular, not occasional oiling, yields the best results. - Ignoring temperature and storage: Keep oil in a cool, dark place to preserve viscosity and prevent thickening.
Maintenance Schedule and Long-Term Care
Develop a simple maintenance rhythm based on usage. For frequent use, check lubrication more often and adjust as needed; for hobbyists sewing occasionally, follow the manual’s guidance and schedule a routine check. Regular cleaning of lint and dust, plus a light oiling every so often, helps keep gears aligned and reduces noise. Maintaining a file or log with dates and actions can help you remember when the next oiling should occur, which is especially useful for busy crafters who rely on their Singer every week.
Troubleshooting Oil-Related Issues
If you notice sticky stitches, unusual squeaks, or fabric snagging after oiling, recheck the oiling points and wipe away any excess. Excess oil can attract lint and create friction, leading to more wear over time. If the machine still feels stiff after distribution, give it another light wipe and re-test on scrap fabric. Persistent issues may indicate deeper mechanical wear, requiring service from a qualified technician or the manufacturer’s support team. In those cases, refer to the manual and keep a record of symptoms for faster diagnosis.
Safety Considerations and Cleaning Up
Always unplug the machine before performing any lubrication and maintenance. Work in a well-ventilated area and keep oils away from hot surfaces or the motor. Use a lint-free cloth for wiping, and avoid skin contact with the oil. Store oil in its original container with the cap tightly closed to prevent contamination. After maintenance, conduct a brief run on scrap fabric to ensure there are no leaks and that stitches are forming consistently. Finally, dispose of used wipes safely and keep your workspace organized to prevent accidents.
Authority Sources
To support this guide, refer to reputable sources on machine lubrication and maintenance:
- https://extension.oregonstate.edu
- https://extension.illinois.edu
- https://www.nist.gov
Tools & Materials
- Sewing machine oil (light, non-detergent)(Only use oil explicitly labeled for sewing machines; apply sparingly to designated points.)
- Lint-free cloth(Use to wipe excess oil and clean surfaces after oiling.)
- Small screwdriver (if panel access is needed)(Consult your model’s manual before removing panels.)
- Owner's manual(Keep it handy for model-specific oiling points and intervals.)
- Clean workspace or mat(Helps keep dust out of the machine during maintenance.)
Steps
Estimated time: 20-40 minutes
- 1
Power down and unplug
Before touching any moving parts, switch off the machine and unplug it from the power source. This prevents accidental activation and protects you from shocks. Confirm the machine is fully disconnected before you start inspecting access points.
Tip: Never oil a plugged-in machine; double-check the unplugged status even if you don’t hear noise. - 2
Open access to oiling points
If your model has removable covers, carefully detach the panel that conceals the oil ports. Use a small screwdriver if required and keep track of screws. Gently expose the shafts and bushing areas that require lubrication.
Tip: Refer to your manual for the exact oil port locations; some models have concealed ports behind a needle plate. - 3
Identify lubrication points
Locate the hook race, shuttle area, needle bar, and any visible gear shafts recommended for lubrication. Do not oil non-movable external surfaces. Plan to apply only a tiny drop at each point that clearly specifies oil ports or joints.
Tip: If unsure, stop and consult the manual or a pro to avoid over-oiling sensitive parts. - 4
Apply oil to designated points
Apply a very small drop of sewing machine oil to each identified point. Use the bottle’s fine nozzle to control the amount and prevent pooling. Avoid applying oil to belts or the motor housing.
Tip: A single drop is often enough for each site; more does not equal better lubrication on internal components. - 5
Distribute the oil
Manually rotate the handwheel toward you to move the oil along the shafts and cams. This helps distribute lubrication evenly and reach recesses that aren’t easily accessible. Pause briefly after a full turn to recheck for dry spots.
Tip: Keep fingers away from the needle area while turning the wheel to avoid pinching or injuries. - 6
Wipe away excess
Use a clean, lint-free cloth to wipe off any excess oil from external surfaces and the bobbin area. Excess oil can attract lint and cause fabric staining over time. Leave a light, fresh sheen on the metal surfaces where necessary.
Tip: Avoid rubbing too hard; you don’t want to push oil into gears where it can pool. - 7
Test with scrap fabric
Reassemble any panels, plug the machine back, and sew a strip of scrap fabric. Observe stitch formation and noise. If stitches look uneven or you hear new squeaks, stop and recheck the lubrication points. Adjust as needed.
Tip: Test on scrap before resuming a real project to prevent fabric damage. - 8
Document maintenance
Record the date of the oiling and the next planned maintenance. Keeping a simple log helps you stay consistent and makes it easier to schedule future service. Store your manual and oil in the same workspace for quick reminders.
Tip: Set a calendar reminder or log in a sewing journal to maintain a routine.
Your Questions Answered
How often should I oil a Singer sewing machine?
Oil frequency depends on usage and the manual guidance. Light hobby use may require less frequent oiling than heavy, daily stitching. Always consult your manual and adjust based on observed performance.
Oiling frequency depends on how much you sew and what your manual recommends; adjust based on how smoothly the machine runs.
What type of oil should I use for a Singer?
Use a light, non-detergent sewing machine oil designed for precision lubrication. Avoid household oils that can gum up mechanisms.
Choose a light sewing machine oil and avoid kitchen or motor oils.
Can I use WD-40 on my sewing machine?
No. WD-40 is not recommended for regular sewing machine lubrication and can attract dust or leave residues that impair performance.
WD-40 isn’t suitable for regular sewing machine lubrication.
Should I oil the motor or belts?
No, do not oil the motor or drive belt. Oil should be limited to designated lubrication points that the manual identifies.
Only oil the specified lubrication points; avoid the motor and belts.
What are common signs I need to oil my machine?
Unusual stitching, stiffness, or increased noise often indicate lubrication or wear issues. Check oil points and clean the area before testing again.
Stiff movement or strange noises can signal lubrication needs; inspect the points and test on fabric.
Where can I find model-specific oiling points?
Refer to the user manual or contact Singer support. Some models have hidden ports behind panels that require careful removal.
Check the manual or Singer support for your exact model.
What should I do if oil leaks after maintenance?
Turn off and unplug the machine, wipe away excess oil, and recheck the ports. If leakage persists, seek professional service.
If oil leaks, unplug, wipe, and verify ports; seek a pro if it continues.
Watch Video
The Essentials
- Oil only designated lubrication points.
- Use light, non-detergent sewing machine oil.
- Wipe away excess oil to prevent lint buildup.
- Test on scrap fabric before resuming projects.
- Keep a maintenance log for reminders.
