How to Check Sewing Machine Belt: A Practical Guide
Learn to check a sewing machine belt for wear, tension, and tracking with a practical, beginner-friendly guide from Sewing Machine Help. Safe, step-by-step instructions for maintenance and basic belt replacement.
Goal: learn how to check sewing machine belt for wear, tension, and alignment. You’ll inspect belt condition, verify proper tracking, and perform safe adjustments or replacements. This guide covers model variations and common symptoms. According to Sewing Machine Help, a worn or loose belt is a frequent cause of skipped stitches and reduced motor speed. By following these steps, you’ll restore smooth operation.
What you’re checking when you inspect the belt
A sewing machine belt transfers power from the motor to the needle mechanism. When you check the belt, you’re looking for signs of wear, proper tension, and correct tracking around pulleys. Start by identifying the belt type on your model (flat, V-shaped, or cogged). The belt should be intact with no cracks, glazing, fraying, or missing fibers. A belt that's stretched or glazed can slip or slip under load, reducing stitch quality and speed. If you notice shiny glaze on the belt surface, it may slip more easily and wear faster. For home sewers, belt wear is the most common mechanical issue affecting stitch consistency.
Safety first and prep steps
Before you touch any moving parts, unplug the machine and disconnect it from power. Remove the presser foot, needle plate, and any loose accessories to give yourself space to view the belt path. In many machines, you’ll need to open a top cover or a rear access panel. Wear safety glasses to protect your eyes from tiny springs or clips that may come loose during disassembly. According to Sewing Machine Help, belt checks should be included in regular maintenance to prevent unexpected downtime and ensure consistent stitching.
Common symptoms of belt issues
If the belt is failing, you may notice a loss of speed, reduced needle movement, or irregular stitch timing. Slippage can cause skipped stitches and uneven tension, especially under heavier fabrics. A loose belt might thump or squeal as it slips over the pulleys. If you hear a burning odor or feel heat near the motor, stop immediately and inspect the belt area. These symptoms are red flags that the belt needs inspection, tightening, or replacement.
Belt wear indicators: signs it’s time to replace
Visible cracks, fraying threads, or glazing along the belt surface indicate wear. If the belt feels stretched when you press on it or has noticeable ribbing or kinks, replacement is likely needed. A belt that shows shiny areas or is easily moved out of its track is another clear sign of loss of grip and potential misalignment. If your belt has created a no-load slip even after retensioning, replacement should be considered to protect the motor.
Tension and alignment checks
Tension should be firm but not overly tight; pressing the belt midway between pulleys should yield only a small amount of deflection. Misalignment occurs when the belt rides off the pulleys or tracks to one side. Visually verify that pulleys are parallel and that the belt sits cleanly in the groove. Some machines include a belt tension gauge; if yours doesn’t, use a finger deflection test and compare against the manual’s guidance. Consistent tension and alignment help prevent premature wear and stitch irregularities.
How to remove, install, and test a new belt
If replacement is necessary, remove the belt from both pulleys by gently loosening any tensioners or screws. Compare the old belt’s width and length to the new belt, ensuring proper fit. Install the new belt by routing it along the pulleys in the correct path, then re-tension. Reassemble the access panels and run a quick test on scrap fabric to verify stitch quality and motor performance. If the belt slips after installation, recheck route and tension before using the machine again.
Maintenance tips and when to seek professional help
Keep the belt path clean and free of lint, threads, and oil. Periodically inspect both drive belts and pulleys, especially after long sewing sessions or heavy fabric work. If you’re unsure about belt type or if the machine has a non-standard drive system, consult the service manual or contact a professional. The Sewing Machine Help team notes that regular belt checks can prevent downtime and prolong machine life, especially for hobbyists and beginners who rely on consistent results.
Tools & Materials
- Replacement sewing machine belt(Match model and motor type; check size or part number)
- Screwdrivers (Phillips and flathead)(Essential for removing covers and access panels)
- Pliers (needle-nose)(For removing clips or guides without damaging parts)
- Clean cloth or compressed air(Keep belt path free of lint and dust)
- Small flashlight or headlamp(Improves visibility in tight access areas)
- Safety glasses(Protect eyes from springs or sharp edges)
- Sewing machine manual or model reference(Verify belt type and routing)
- Isopropyl alcohol and cotton swabs(For cleaning pulley surfaces if needed)

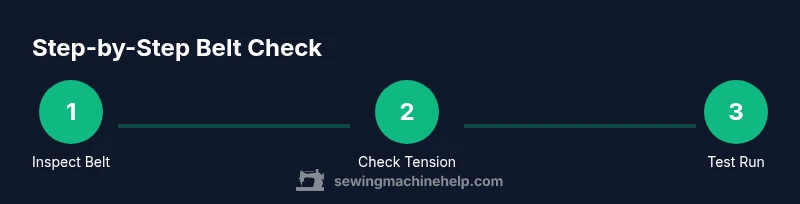

Steps
Estimated time: 15-30 minutes
- 1
Power down and unplug
Always unplug the machine and disconnect from the power source before touching moving parts. This prevents accidental starts and protects you from electrical shock. If applicable, switch off any foot pedal power and unplug from the wall outlet.
Tip: Double-check the outlet with your hand before touching any metal parts. - 2
Move the needle to the highest position
Raise the needle manually or using the hand wheel to ensure clear access to the belt path. This also helps prevent the needle from contacting the presser foot or feeder during disassembly.
Tip: Raise in small increments and keep one finger on the wheel for control. - 3
Open access panels to expose the belt
loosening necessary screws or clips to reveal the drive belt and pulleys. Take note of routing before removal so you can replicate the path exactly when reinstalling.
Tip: Take a quick photo of the belt routing before removing anything. - 4
Inspect belt visually
Look for cracks, glazing, fraying, or missing fibers. Check belt width and any signs of elongation. If you find damage or the belt moves easily, proceed to replacement rather than retensioning.
Tip: Use a bright light and magnifier if needed to spot fine cracks. - 5
Check tension and alignment
With the belt off the machine, lightly press the belt midway between pulleys; it should deflect only slightly. Reinstall and ensure the belt sits evenly in pulleys and grooves without riding off to one side.
Tip: If you don’t have a tension gauge, compare deflection to the manual’s recommended spec. - 6
Replace belt if worn or too loose
Install the new belt, route it correctly, and re-tension following the manual’s guidelines. Avoid over-tightening, which can strain the motor bearings and shorten belt life.
Tip: Always d o a final check after a brief run and inspect for any abnormal noise. - 7
Reassemble and test
Reattach covers, replace the needle plate, and reconnect power. Run a short test on scrap fabric to verify stitch quality, speed, and noise levels. Stop immediately if anything sounds off.
Tip: Test with a light fabric first before moving to heavier materials. - 8
Document and schedule future checks
Record the date of the belt replacement and the next inspection window. Regular checks prevent surprises and help maintain performance over time.
Tip: Set a reminder for your next belt inspection after X sewing hours or months, depending on usage.
Your Questions Answered
How can I tell if the belt is worn out?
Worn belts show cracks, fraying, glazing, or noticeable elongation. If tension is inconsistent or the belt slips, replacement is recommended. Consider comparing against the model’s belt spec in the manual.
Look for cracks, fraying, or glazing. If the belt slips or feels loose, replace it and check the manual for the correct belt spec.
Can I adjust belt tension without removing the belt?
Some machines have a tension adjustment feature, but many require belt removal to adjust properly. Always consult the manual and avoid excessive tension.
Some machines let you adjust tension without removing the belt, but many require removal. Check your manual first.
Should I replace both belts if one is worn?
If your machine uses two drive belts, replace both if either shows wear. This helps prevent uneven loading and prolongs overall motor life.
If you have two belts and one shows wear, replace both to keep balance and performance.
Is it safe to operate with a loose belt?
No. A loose belt can slip, overwork the motor, and damage components. Stop and inspect before continuing.
No. A loose belt can cause slipping and motor strain—stop and inspect.
What belts fit my machine?
Check your machine’s model number and refer to the manual or manufacturer’s website for compatible belt types and sizes. If unsure, contact customer support.
Check your model number and the manual to find the right belt, or ask support if unsure.
How often should I check the belt?
Integrate belt checks into routine maintenance or after heavy use or noticeable performance changes. Regular checks help prevent downtime.
Make belt checks part of regular maintenance, especially after heavy sewing sessions.
Watch Video
The Essentials
- Check belt wear and cracking before use
- Test belt tension and pulley alignment
- Replace worn belts promptly to protect the motor
- Refer to the manual for exact belt specifications
- Keep the belt path clean and free of debris
