Fix Sewing Machine Bobbin: A Step-by-Step Guide
Learn how to fix sewing machine bobbin jams and winding errors with a practical, beginner-friendly guide. Accurate, safe steps to diagnose tension, placement, and path for reliable stitches.
To fix sewing machine bobbin issues, identify common jams, winding mistakes, and misplacement, then correct the thread path and tension. According to Sewing Machine Help, most bobbin problems come from improper winding, incorrect insertion, or misadjusted tension. This quick guide highlights essential checks and a safe test sew you can perform in under 10 minutes, with practical tips for beginners.
Understanding the bobbin system
The bobbin is a small, cylindrical spool that provides the lower thread in a sewing machine stitch. It works in tandem with the needle thread to form a balanced lock stitch. Bobbin design varies by machine: front-loading vs. drop-in, metal vs. plastic cases, and fixed vs. removable bobbin posts. The performance of your stitches depends on correct winding, precise insertion, and the tension relationship between top and bottom threads. When either thread is too loose or too tight, you’ll see loops on the bottom or the top, bird-nesting, or skipped stitches. According to Sewing Machine Help analysis, tension imbalance and lint buildup are frequent culprits that lead to bobbin-related problems. Always refer to your manual for model-specific guidance, but the general principles below apply to most home machines. A well-tuned bobbin setup contributes to smooth feeding and clean seam finishes across fabrics from cotton to denim.
Common signs of bobbin problems
Stitches that look uneven, loops on the bottom fabric, or thread nesting around the needle plate often point to bobbin trouble. If you notice bottom threads appearing on the top side, or the fabric snagging as the feed dogs move, inspect the bobbin path first. A jammed bobbin case, a bobbin wound too tightly, or a misaligned bobbin can all cause these symptoms. Testing with a scrap fabric helps differentiate between top-thread tension and bobbin-tension issues. In addition, check for lint or thread fragments in the bobbin area, as small debris can disrupt the thread path and worsen tension misalignment. Sewing machines often reveal hints in the form of consistent loops on the underside or thread snarls near the bobbin housing, which is your cue to pause and re-evaluate.
Quick checks before you dive in
Power off and unplug the machine, then move to a clean, well-lit workspace. Remove the bobbin cover and take out the bobbin gently to inspect for nicks, burrs, or loose windings. Check that the bobbin is not overfilled or underfilled and that the thread is sliding smoothly off the bobbin without snagging. Clean the bobbin area with a lint brush or soft cloth to remove dust, lint, and stray threads. Verify the needle is intact and properly aligned—bent needles can mimic bobbin problems by disrupting the thread path. By doing a quick diagnostic sweep, you’ll save time and reduce the chance of causing new issues.
Step-by-step: fix common bobbin jams
First, remove any fabric, move the needle to the highest position, and take out the bobbin. Gently clean the bobbin housing and ensure there are no lint balls in the shuttle race. Reinsert the bobbin ensuring it turns in the correct direction as defined by your machine’s manual. If you encounter a stubborn jam, use a small flashlight and a pair of tweezers to remove lint without displacing parts. After clearing the jam, re-test with a scrap piece of fabric to confirm the issue is resolved.
Step-by-step: correct bobbin winding and placement
Wind a new bobbin with a smooth, even layer of thread. Place the bobbin into the case so that the thread unwinds in the direction indicated by the manual. Ensure the thread tail is properly captured in the slot and that the case sits snugly without wobbling. Rotate the handwheel slowly to observe the thread path and ensure there are no catches. Re-thread the upper path if needed, following the machine’s threading diagram exactly to avoid path confusion.
Step-by-step: adjust bobbin tension
If your machine has an adjustable bobbin tension screw, make small adjustments (no more than a quarter turn at a time). Typically, bobbin tension should be slightly looser than the upper-thread tension. Make a small adjustment, test on scrap fabric, and observe the stitch result. Repeat cautiously until the bottom thread lays neatly on the top without loops. If you’re unsure, reset to the factory setting listed in your manual and re-test.
Step-by-step: test sew and diagnose stitches
Set up a simple test stitch on scrap fabric and inspect both sides of the seam. If the bottom thread shows obvious loops or the top thread looks loose, re-check the tension balance, path, and needle condition. Try different fabrics to see if the problem is fabric-specific. Keep a note of what you changed and the impact on stitch quality. If issues persist after these steps, consult the manual for model-specific bobbin tension recommendations or seek professional service.
Maintenance routines to prevent future bobbin issues
Regular cleaning of the bobbin area and periodic checks of thread paths reduce the likelihood of jams. Remove lint after every few uses, oil only where the manual specifies, and replace worn bobbins promptly. Use the correct bobbin type for your machine and test with quality thread to minimize lint buildup. A simple, proactive maintenance habit — every few projects — helps improve reliability and extends the life of your sewing machine.
Tools & Materials
- Cleaning tools (lint brush or small vacuum)(Soft brush to remove lint from the bobbin area)
- Replacement bobbins (plastic or metal)(Ensure they match your machine's bobbin type)
- Spool of sewing thread(Choose thread that matches fabric and project)
- Empty bobbin case (if removable from machine)(Some machines use integrated bobbin; check manual)
- Small screwdriver set(Only if your machine uses tension screws)
- Tweezers or thin-nose pliers(Guides thread and removes lint safely)
- Soft cloth or cotton swabs(For wiping dust and lint from hard-to-reach areas)
- Sewing machine oil (as per manual)(Only apply where the manual specifies)
- Machine manual(Reference for bobbin type, tension, and path)
Steps
Estimated time: Total time: 25-45 minutes
- 1
Prepare workspace and tools
Clear your work area, unplug the machine, and lay out tools. This prevents accidents and helps you stay organized as you disassemble parts. A well-lit, flat surface reduces the risk of dropping small components.
Tip: Have a small tray to keep tiny screws and bobbins from rolling away. - 2
Remove bobbin cover and take out the bobbin
Open the bobbin cover, gently lift the bobbin out, and note the winding direction. Hold onto the thread tail to prevent it from unraveling. If your machine uses a bobbin case, remove it with care to inspect both parts.
Tip: Take a quick photo of the setup before disassembly to aid reassembly. - 3
Clean the bobbin area
Use a lint brush or compressed air (if safe for your model) to remove lint and thread fragments from the bobbin housing. Wipe with a soft cloth to remove any stubborn dust. Ensure the area around the shuttle and feed dogs is clear.
Tip: Avoid blasting with air if your machine manual warns against it. - 4
Inspect for damage
Check the bobbin, bobbin case, and tension springs for nicks, burrs, or deformation. A damaged bobbin can cause uneven stitches or jams, and replacing it is usually easier than chasing tension anomalies.
Tip: If you find burrs, do not attempt rough filing—replace the part. - 5
Wind and insert a new bobbin
Wind a fresh bobbin with an even layer of thread and thread the bobbin in the case as per your model’s direction. Ensure it turns freely in the case and that the thread tail is properly seated.
Tip: Wind a little extra tail to keep the thread taut when loading. - 6
Reassemble and check needle alignment
Reinsert the bobbin case, align it with the slot, and ensure the needle is properly installed and centered. Thread the upper path according to the manual, checking for any points where the thread might snag.
Tip: Close the cover slowly and listen for any unusual clicks that might indicate misalignment. - 7
Test tension path and puncture test fabric
Run a quick test stitch on scrap fabric to observe stitch balance. If you see loops or uneven stitches, adjust the top tension first and verify the bobbin tension if your machine supports it.
Tip: Use a lightweight fabric first to detect issues before moving to heavier material. - 8
Document and maintain
Note what you adjusted and set a reminder to clean the bobbin area regularly. Create a simple maintenance cadence to avoid recurrent jams.
Tip: Schedule a short monthly check to keep the area free of lint.
Your Questions Answered
What are the most common bobbin problems?
Common bobbin problems include loose bottom threads, snarled top threads, and frequent jams. These are usually caused by incorrect winding, improper insertion, or tension imbalance. Start by inspecting the bobbin and path, then re-wind and reinsert carefully.
Most bobbin problems come from winding, insertion, or tension issues. Check the path, re-wind the bobbin, and reinsert properly.
How can I tell if my bobbin is wound correctly?
A properly wound bobbin sits flat with no loose threads or gaps and threads off smoothly in the chosen direction. It should rotate within the bobbin case without catching. If you see snags or bunching, re-wind more tightly or check the direction of wind.
A correctly wound bobbin rotates smoothly and has no loose threads. If it catches, re-wind and recheck alignment.
Can a bad bobbin case cause stitching issues?
Yes. A warped or damaged bobbin case can cause uneven tension and looping. If the case doesn’t seat properly or shows wear, replace it and re-test.
A bad bobbin case can make stitches uneven. If it’s worn, replace it and test again.
Do top-thread issues affect bobbin performance?
Top-thread tension interacts with bobbin tension to form stitches. If the top thread is too loose or too tight, it can mimic bobbin problems. Check the top thread path and re-thread if necessary.
Top thread tension affects bobbin performance. Re-thread and adjust the top tension if stitches look off.
Should I oil or service my bobbin area regularly?
Only oil where the manual indicates. Over-oiling can attract lint and worsen jams. Routine cleaning is typically sufficient for most home machines.
Oil only if your manual says so. Otherwise, keep the area clean.
What if the machine still sews poorly after fixes?
If issues persist after winding, insertion, and tension checks, consider a professional service or consult the manual for model-specific guidance. Sometimes components like the shuttle or feed dogs may need inspection.
If problems persist after fixes, get professional help or consult your manual for model-specific guidance.
Watch Video
The Essentials

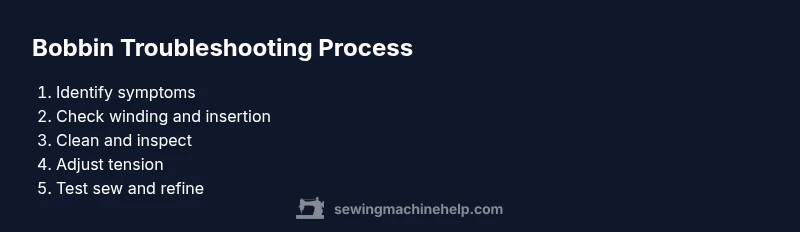

- Identify the problem by observing stitch balance and lint buildup.
- Correct winding and insertion are foundational to a clean stitch.
- Only adjust bobbin tension if your model allows it and do so in small increments.
- Regular cleaning prevents future jams and extends machine life.
- Always test on scrap fabric before sewing final project.
