How to Fix Sewing Machine Bobbin Tension
Learn how to diagnose and fix bobbin tension on sewing machines with safe, actionable steps. This guide covers common causes, step-by-step fixes, testing methods, and tips for reliable stitches.

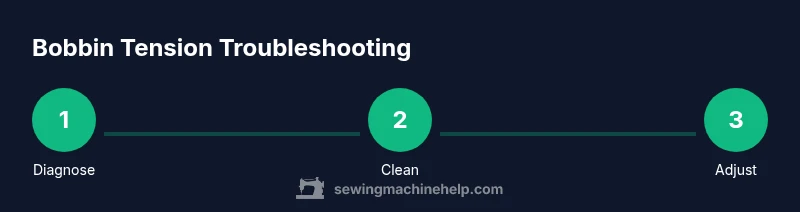

You will diagnose and fix bobbin tension by inspecting the bobbin case, cleaning the tension area, rethreading the bobbin and upper thread, and making careful adjustments. Prepare essential tools, test on scrap fabric, and repeat until stitches are balanced. This quick answer highlights the core workflow before you dive into the steps. You’ll verify thread paths, clean the bobbin area, adjust the bobbin-case tension by small increments, and confirm results with tests on familiar fabrics.
Why bobbin tension matters
Bobbin tension is a critical part of stitch formation. When the bobbin tension is too loose, you may see loops on the bottom of your fabric; if it's too tight, the top thread can pucker or snap. For home sewists, understanding bobbin tension helps avoid weak seams and skipped stitches. According to Sewing Machine Help, bobbin tension interacts with upper thread tension and fabric type to determine stitch balance. A correctly balanced stitch shows even top and bottom stitches, with no loops or lumps. This guide covers practical tests you can do, safe adjustments, and loading tips to keep stitches consistent across fabrics like cotton, denim, and knits. We'll start with quick checks you can perform before you adjust anything, then outline step-by-step fixes and safe testing routines.
Common causes of bobbin tension problems
Lint or thread fragments in the bobbin case can throw off tension, as can a damaged bobbin case, a poorly wound bobbin, or improper insertion. Using a bobbin that doesn’t match your machine, burrs on the case, or a misaligned tension spring can also create tension drift. Other culprits include fabric type (heavy fabrics demand different tension) and a worn needle that creates uneven stitches. Regular maintenance and correct threading are essential to prevent these issues. Sewing Machine Help analysis shows that most tension problems are resolved by cleaning, re-threading, and resetting the tension springs.
Before you start: safety and setup
Always unplug the machine before opening the cover. Remove the presser foot and needle, then place the machine on a stable surface with good lighting. Have scrap fabric handy for testing so you don’t waste project material. Keep small parts contained using a tray to avoid losing screws. Safety first: never place fingers near moving parts while the machine is plugged in.
Tools and materials you’ll need
Gather the essential tools before you begin:
- Small screwdriver set (essential for removing the bobbin case)
- Lint brush or compressed air (for cleaning dust and lint)
- Tweezers or needle-nose pliers (for picking threads)
- Spare bobbins and replacement needles (for testing and adjustments)
- Sewing machine oil and soft cloth (for cleaning and lubrication)
- Good lighting and a scrap fabric pad (for testing stitches)
How to diagnose tension without disassembly
Start by re-threading both the upper thread and bobbin while the needle is raised. Test stitch on a scrap piece of fabric, watching for bottom thread loops or top thread puckering. If the top thread looks great but the bottom is loose, focus on bobbin tension and bobbin-case alignment. Conversely, if the bottom looks clean but the top is loose or puckered, adjust the upper thread tension and needle size. Keep notes of what you changed so you can revert if needed.
Common mistakes and how to avoid them
Avoid forcing thread through guides or pulling fabric while stitching – this can mislead tension readings. Don’t overtighten screws or springs; small, incremental changes yield the best results. Refrain from swapping bobbins mid-test; use the same bobbin to measure true tension. Finally, never skip cleaning the bobbin area before making tension adjustments.
Testing, tweaking, and finalizing stitches
After each adjustment, test on scrap fabric with several passes in different stitch lengths. Look for a balanced stitch where neither loop forms on the top nor bottom. If you see issues, fine-tune in small increments, re-test, and record changes. When satisfied, reassemble the cover and run a short practice seam on a similar fabric to confirm stability.
When to seek professional service
If you’ve tried cleaning, re-threading, and minor tension tweaks without improvement, or you notice obvious mechanical wear, it may be time to consult a professional technician. A trained repair person can check the bobbin case’s spring tension, misalignment, and internal gears. Regular professional maintenance can extend the life of your sewing machine and prevent further damage.
Quick home testing routine
Use a small piece of scrap fabric and a simple stitch. Start with mid-range tension and adjust in small increments. Run several passes and observe top and bottom threads. This routine helps you validate changes quickly and decide whether to keep adjusting or revert to a known good setting.
Tools & Materials
- screwdriver set (tiny)(Phillips #0 or #1, depending on your model)
- lint brush(Dust and lint removal from bobbin area)
- tweezers(For removing lint and thread fragments)
- spare bobbins(Keep spools clean and wound evenly)
- replacement needles(Fit your current project fabric)
- sewing machine oil(Only if your model requires lubrication)
- soft cloth(For wiping dust and oils)
- scrap fabric(Test patches for tension checks)
Steps
Estimated time: 60-90 minutes
- 1
Power down and prepare the machine
Unplug the machine and remove the needle to prevent accidental injuries. Place the machine on a stable surface and gather your testing fabric. This upfront step keeps you safe and ensures you don’t lose small parts.
Tip: Double-check the power is off before touching any moving parts. - 2
Open the bobbin area and inspect
Remove the bobbin case and take a close look for lint, threads, and burrs. Use a lint brush to clean the area and a pair of tweezers to clear stubborn threads. Keeping this area clean improves tension stability.
Tip: Do not force the bobbin case out; gently lift from the indicated slot. - 3
Re-thread the bobbin and upper thread
With the needle raised, re-thread the machine following the manufacturer path. Rewind or replace the bobbin if it’s damaged, then thread the upper thread through guides to the tension discs.
Tip: Ensure the thread sits properly in the tension discs to avoid false readings. - 4
Check and set the bobbin case tension
With the bobbin in place, gently adjust the bobbin-case tension screw. Start at a neutral setting and make very small turns to tighten or loosen. Test again on scrap fabric to observe changes.
Tip: Tiny turns yield noticeable changes; avoid large adjustments at once. - 5
Test stitch and evaluate top vs bottom balance
Run several stitches on scrap fabric at a normal sewing speed. Look for bottom thread loops or top thread puckering. Record what you changed for reference.
Tip: If bottom loops persist after slight tightening, recheck bobbin insertion. - 6
Fine-tune with small adjustments
Make small incremental changes to the bobbin-case screw or feed mechanism depending on your model. Keep testing after each adjustment to verify results.
Tip: Always keep changes incremental to avoid overshooting the correct tension. - 7
Reassemble and run a final test
Reinstall the bobbin cover and presser foot. Run a final test on fabric of similar weight to ensure stitches stay balanced over time.
Tip: Check for any unusual noises during the final test. - 8
Document the settings for future reference
Record the tension setting and stitch type that produced balanced results. This helps you quickly adjust again if you switch fabrics or threads.
Tip: Include notes about fabric type and thread used for reference.
Your Questions Answered
What are the most visible signs of bobbin tension problems?
Common signs include bottom loops, top thread puckering, or uneven stitches. Testing on scrap fabric helps determine whether the issue is bobbin tension, upper thread tension, or needle problems.
Common signs include loops on the bottom or top thread puckering. Test on scrap fabric to confirm the cause.
Can incorrect threading cause bobbin tension issues?
Yes. Re-thread both the upper thread and bobbin path exactly as the manufacturer directs. Misthreading frequently mimics tension problems.
Yes. Re-thread both the upper thread and bobbin path carefully per the manual.
Is a damaged bobbin case the only reason for tension problems?
A damaged bobbin case or worn spring can cause tension drift. Check for burrs, alignment and spring integrity during inspection.
A damaged bobbin case or worn spring can cause tension drift; inspect for burrs and misalignment.
Do I need special tools to adjust bobbin tension?
Most adjustments can be done with basic tools and your machine's manual. Avoid forcing parts or applying heavy leverage.
Usually not; use the manual and small screwdriver for minor adjustments.
How long does it typically take to fix bobbin tension?
A careful diagnostic and adjustment session typically takes about 30-90 minutes, depending on the machine and issue severity.
Plan for about an hour, plus a test run on fabric to confirm stability.
Watch Video
The Essentials
- Test top and bottom stitches on scrap fabric before finalizing.
- Make small, incremental tension changes to avoid overshooting.
- Keep the bobbin area clean and correctly threaded.
- If in doubt, revert to neutral settings and re-test.
