With this guide you will learn how to fix sewing machine timing, diagnose timing issues, and safely realign the needle and hook to restore stitch quality. The steps apply to most home machines and require only common tools. Prepare your workspace, unplug the machine, and gather basic tools before you begin. This quick answer previews the full method you will find in the body.
Understanding Sewing Machine Timing
Timing is the heartbeat of your sewing machine. It ensures the needle and the rotary hook meet at the exact right moment to catch the thread and form a stitch. According to Sewing Machine Help, proper timing is a precise synchronization between the needle's travel and the hook's rotation. When timing is off, skipped stitches, thread nests, or misaligned stitches are common symptoms. The goal is not to force one part to reach another, but to align the moving parts so they interact cleanly at each stitch. Start with a calm, organized workspace, because precision comes from methodical, well-lit inspection and adjustment, not haste. By understanding the timing window, you can decide whether the machine needs minor realignment or full disassembly.
Symptoms of Timing Problems
Timing issues manifest in several ways. You may see skipped stitches where the needle misses the loop, bird-nesting beneath the fabric, or stitches that appear tall or loose. Some machines produce inconsistent stitch length or fabric jams around the needle plate. For many home machines, timing problems arise after a dropped needle, a jammed shuttle, or a misaligned needle after attempting to remove a stubborn bobbin. If you hear a grinding sound during stitching, stop immediately and inspect the timing components, as continued operation could cause more damage. In all cases, verify that the needle is installed correctly and that the needle clamp is tight before assuming timing is the issue.
Safety First: Tools and Setup
Before you touch any moving parts, unplug the machine and remove the plug from the outlet. Set the machine on a stable surface and use good lighting. Gather the essential tools and organize screws in small containers to avoid mix-ups. Wear eye protection if your workshop is cluttered or the components have small springs. Keep a camera or notebook handy to document screw positions and part orientation so reassembly is accurate. A clean, static-free workspace helps prevent accidental losses of tiny components. Always work slowly and deliberately; timing adjustments require discipline, not force.
Preparing for Timing Adjustments
Inspect the needle, needle plate, and bobbin area for any obstruction or debris. Make a visual note of the relationship between the needle's top position and the shuttle or hook in its home position. Some machines have timing marks on the needle bar and hook housing; if yours does, use a bright light and a magnifying loupe to read them clearly. Measure any gaps with a caliper or precise feeler gauge if your manual recommends it. Create a baseline: document the current alignment with photos so you can revert if needed. Having a baseline makes it easier to track changes and confirm improvement after adjustments.
How to Align the Timing (Overview)
The alignment process typically involves removing the needle plate to expose the hook and timing gears, aligning timing marks, and lightly tightening adjustment screws while the hook and needle move in sync. Because every machine design is slightly different, the general approach is to verify the relationship at the point of stitch formation, ensure the hook catches the needle smoothly, and then test on scrap fabric. If your model uses a timing belt or electronic timing, consult your manual for model-specific steps. This overview prepares you for the step-by-step procedure that follows, emphasizing careful observation, incremental changes, and verification through test stitching.
Post-Adjustment Testing and Maintenance
After you set the timing, reassemble any covers, reinstall the needle, and thread a sample swatch. Test straight stitches on scrap fabric, then switch to zigzag or decorative stitches to ensure consistent performance across stitch types. If tension or thread looping persists, re-check needle size, needle type for the fabric, and bobbin tension. Regular maintenance—cleaning lint, oiling as recommended, and keeping the bobbin case free of lint—helps prevent timing drift. Remember to document any adjustments so future servicing can be efficient and accurate.
Maintenance to Prevent Timing Issues
Preventive care is the best defense against timing drift. Schedule periodic cleaning of the shuttle area, replace worn gears or belts as specified by the manufacturer, and avoid forcing components when removing stubborn parts. Always store your machine in a dust-free environment. If you frequently sew heavy fabrics, inspect timing more often because heavy loads can stress timing components. A small amount of machine oil on the appropriate points, per your manual, goes a long way toward maintaining proper synchronization and longer part life.
Tools & Materials
- Precision screwdriver set (small / micro)(Flat and Phillips heads; anti-static preferred)
- Tweezers or needle-nose pliers(Tiny parts placement and removal)
- Small mirror(For viewing recessed timing marks)
- Caliper or feeler gauge(If your manual specifies timing gap checks)
- Lubricant/oil per manual(Only apply to designated points)
- Soft brush or lint-free cloth(Clean lint from shuttle area)
- Replacement needle (same type as used for testing)(Install after alignment)
- Camera or notebook(Document screw positions and orientation)

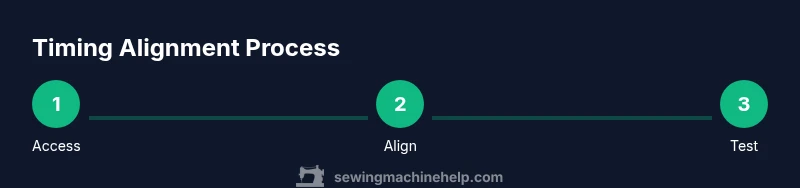

Steps
Estimated time: 60-90 minutes
- 1
Disconnect and Access timing area
Unplug the machine, remove the presser foot and needle, then take off the needle plate to access the shuttle and hook race. This initial access gives a clear view of the timing zone and prevents accidents during adjustment.
Tip: Photograph screw positions before moving anything. - 2
Remove needle and position the needle bar
Carefully loosen the needle clamp and remove the needle. Lower or raise the needle to its highest position to ease access to the timing geometry and prevent accidental needle movement during adjustments.
Tip: Hold the needle bar steady with your non-dominant hand while loosening the clamp. - 3
Inspect timing marks and geometry
Look for timing marks on the hook housing and needle bar. Verify they align in the rest position and that the needle aligns with the hook as it passes the center. If marks are obscure, use a bright lamp and magnifier to read them clearly.
Tip: If marks are damaged, do not force alignment—note and compare with the service manual. - 4
Loosen timing screws marginally
Loosen the screws that control the needle bar and hook housing just enough to allow small adjustments. Do not fully remove screws; this minimizes the risk of losing alignment geometry.
Tip: Make tiny adjustments (0.1–0.2 mm at a time) and recheck alignment. - 5
Align needle and hook in stitch position
Rotate the handwheel toward you to bring the needle to its highest point and observe the hook's path. The hook should just begin to encounter the needle as it descends. If not, adjust the hook position or needle bar angle until smooth engagement occurs.
Tip: Work in small increments and test frequently. - 6
Tighten screws and re-test
Lightly retighten the screws while observing the timing as you gently move the handwheel. Re-check alignment by running a few test stitches on fabric scraps. Ensure no binding or unusual resistance.
Tip: Wipe away any oil after testing to avoid staining fabric. - 7
Reassemble and thread
Replace the needle plate, reinstall the needle, and thread the machine. Ensure thread path is correct and that tension dials are set to your usual baseline before more testing.
Tip: Double-check that the bobbin is wound and inserted correctly. - 8
Final test and notes
Run a full test on scrap fabric with several stitches, including straight and zigzag. If the fabric feeds smoothly and stitches form evenly, the timing is likely correct. Note any discrepancies for future maintenance.
Tip: Keep a written log of changes for future reference.
Your Questions Answered
What does timing mean on a sewing machine and why is it important?
Timing is the synchronization between the needle and the hook so that the hook catches the thread at the correct moment. Proper timing ensures consistent stitches and fabric feeding. Without correct timing, stitches can skip, loop, or break.
Timing means the needle and hook work together so stitches form correctly. If they’re out of sync, your stitches will fail.
Can I fix timing without a professional?
Many home machines can be adjusted with careful inspection and patience. However, newer computerized machines or models with sealed timing may require professional service to avoid damage.
You can often fix timing yourself if you follow the manual and take it slowly; some models should be serviced by a pro.
What are common signs of timing problems?
Common signs include skipped stitches, bird-nesting under fabric, stitches that are uneven or irregular, and unusual noises during stitching. If you suspect timing, stop and inspect the shuttle area and needle path.
Look for skipped stitches and nesting; those usually mean timing needs adjustment.
How long does a timing adjustment take?
A basic timing check and minor realignment can take about 30-60 minutes. A full disassembly and realignment may take longer, up to 90 minutes or more depending on the model.
Most timing tweaks take under an hour, but be prepared for longer if you need full disassembly.
Is timing adjustment covered under warranty?
Warranties typically cover manufacturing defects, not wear from user adjustments. Check your policy and contact the manufacturer for guidance if timing issues arise under warranty.
Warranties may not cover user-induced timing changes; verify with the manufacturer.
What tools do I need to check timing?
Basic precision screwdrivers, a small mirror or magnifier, tweezers, and a camera for documentation are commonly used. Some models require timing gauges per the manual.
A small screwdriver set, tweezers, and a camera for notes are typically enough to start.
Watch Video
The Essentials
- Verify timing with precise alignment and test on fabric scraps.
- Document screw positions before disassembly.
- Use incremental adjustments; small changes yield reliable results.
- Follow manufacturer guidelines to avoid damage.
