How to Fit a Sewing Machine Belt: Step-by-Step Guide
Learn how to fit a sewing machine belt with a practical, step-by-step approach. Identify belt type, replace it correctly, and ensure proper tension for smooth stitching across common models.
By the end of this guide you will be able to fit a sewing machine belt confidently and safely. You’ll identify belt type, remove the old belt, select a correct replacement, and re-tension the drive belt to restore smooth stitching. Before you start, gather the right tools, unplug the machine, and follow the step-by-step instructions.
How a sewing machine belt drives motion and timing
At the heart of most home sewing machines is a drive system powered by a belt linking the motor to the handwheel. The belt ensures motion is transferred smoothly, so the needle moves in time with the bobbin. Over time belts wear or slip, which can cause timing issues, skipping stitches, or reduced sewing speed. According to Sewing Machine Help, belt wear is a common cause of timing issues in home sewing setups. Understanding this system helps you diagnose problems before they escalate. In this section you’ll learn what the belt does, how to spot wear, and why correct tension matters. A correctly fitted belt keeps take-up standards consistent and helps your stitches stay even across fabrics and speeds. It’s not glamorous, but the belt is a silent workhorse that keeps your machine singing.
Safety precautions you should always take
Before you touch anything, unplug the machine from the power source and disconnect the foot pedal if it relies on a separate control. Remove all presser feet and accessories to prevent snagging, and work in a well-lit, stable area. Wear eye protection if you’re using tools that could slip, and keep small screws in a magnetic tray or a labeled container. This isn’t a two-minute fix; taking care upfront avoids snapped belts, damaged pulleys, or unintended starts when you reassemble. Remember, a calm, clean workspace reduces mistakes and speeds up the process.
Identifying belt type and model-specific requirements
Sewing machines can use different belt configurations, most commonly a flat belt or a round, V-shaped belt. The correct belt type, width, and length depend on your machine’s make and model. Start by checking the user manual or model plate for the belt specification. If you don’t have the manual handy, look for subtle markings on the old belt or consult the manufacturer’s support site. Matching the belt type precisely prevents drive slippage and timing problems that can affect stitch quality. If your belt is cracked, stretched, or tactilely worn, plan for a replacement rather than trying to stretch a damaged belt back into service.
Tools and materials you’ll need for the job
This section outlines common items that speed up the belt replacement process. Essential tools include a set of screwdrivers (Phillips and flathead), needle-nose pliers for clips or retaining screws, and a replacement sewing machine belt that matches your model. A soft lint-free cloth helps clean pulleys, and your machine’s manual provides the exact belt specification. Optional aids like a small flashlight or a camera to document your steps can prevent mistakes. Keeping a tidy workspace and organized fasteners makes reassembly straightforward and reduces the chance of misplacing parts.
Accessing the drive system: removing covers and freeing the belt
Gain access to the drive belt by carefully removing the exterior covers or the motor housing as described in your manual. Use the appropriate screwdriver to loosen screws, taking care not to strip the heads. Once the cover is off, identify the belt’s path from the motor pulley to the handwheel. If you notice any oil, lint, or debris, clean thoroughly with a lint-free cloth. Clear access prevents accidental pinching and helps you inspect for wear without disassembling more than necessary. Keep track of all screws and small parts so reassembly is clean and quick.
Removing the old belt and inspecting for wear
Loosen any retention clips or screws that hold the belt in place, then slip the belt off the pulleys. Examine the belt for cracks, glazing, fraying, or stiffness—these are signs it should be replaced even if the machine otherwise runs. If the belt is stretched, it may slip or fail under load. Document any wear you see so you can compare it to the new belt and ensure the same thickness and width. While you’re at it, inspect pulleys for glazing or grooves that could undermine belt grip. A worn pulley can cause belt misalignment, which leads to uneven stitching.
Selecting the replacement belt: size, type, and compatibility
Choose a belt that matches the original in type (flat or V), width, and approximate length. Belt length is often determined by the distance between the motor pulley and the handwheel with the belt seated. If your model uses a nonstandard belt, consult the manufacturer or an experienced technician. When in doubt, measure the old belt’s outside length and the pulley diameters and compare with the replacement’s specifications. A correctly chosen belt prevents slip, reduces wear on pulleys, and helps maintain stitch timing.
Installing the new belt: routing, seating, and alignment
Carefully route the new belt along the pulleys following the same path as the old belt. Ensure the belt is fully seated in each pulley groove and that it sits flat without twists. Hand-turn the handwheel to check for smooth motion and to spot any pinch points. Do not force the belt—if it binds, back off and re-seat. A properly installed belt should move freely with consistent resistance and no wobble. For best results, align the belt with the center of each pulley to minimize lateral drift during operation.
Reassembly, tensioning, and a final test
Reattach the motor cover and any screws you removed, then plug the machine back in. With the belt in place, gently rotate the handwheel to feel for smooth operation. Check that tension is appropriate: the belt should have a little give when pressed midway (not sagging). If your machine uses an automatic tensioning feature, ensure it’s functioning correctly. Finally, run a quick test on a scrap piece of fabric and observe stitch consistency and speed across several stitches. A careful test confirms your belt installation was successful and your machine is ready for regular use.
Common mistakes to avoid and how to fix them
Avoid over-tightening the belt, which strains the motor and can cause premature pulley wear. Don’t rush reassembly—skipping steps or misplacing screws creates loose parts or misalignment. Never leave lint or oil on the belt path, as debris reduces grip and increases skip risk. If you notice persistent skip or poor stitch quality after replacement, recheck belt dimensions, path, and tension. A small misstep early on can cascade into bigger timing issues later.
Tools & Materials
- Replacement sewing machine belt (correct type for your model)(Check your model for flat belt, V-belt, width, and length; measure if needed.)
- Flathead and Phillips screwdrivers(Have both on hand; use Phillips #2 and a corresponding flathead for screws.)
- Needle-nose pliers(For removing clips or retaining components without bending parts.)
- Soft lint-free cloth(Clean pulleys and surfaces before installing the new belt.)
- Owner’s manual or model-specific belt information(Always verify belt type and drive path from the source for your machine.)
- Safety gear (eye protection)(Optional but recommended when handling small parts.)

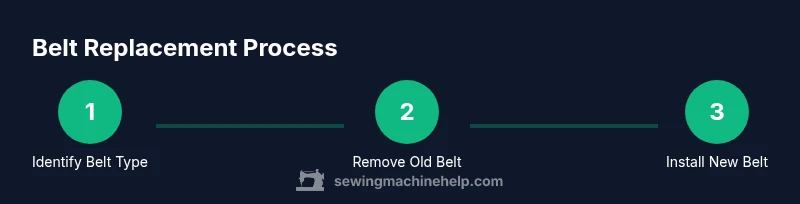

Steps
Estimated time: Estimated total time: 30-60 minutes
- 1
Power down and unplug
Disconnect the machine from power and remove the foot pedal to prevent accidental starts. This first action protects you from electrical shock and prevents the handwheel from moving unexpectedly during belt removal. Take a moment to review the belt path in the comfigment and locate the screws you’ll loosen next.
Tip: If the plug or pedal is hard to reach, switch off at the circuit breaker for added safety. - 2
Open the motor cover
Use the screwdriver to remove the cover screws and carefully lift the cover away. Expose the drive area where the belt sits. Do not torque the screws; keep them organized so you can return the cover to its original position.
Tip: Photograph each stage before removing parts to aid reassembly. - 3
Locate the belt path
Identify how the belt traverses from the motor pulley to the handwheel. Confirm there are no twists and that the belt sits in the pulley grooves. Visual checks prevent misrouting that could cause belt slip.
Tip: If you can't clearly see the path, use a mirror to trace the belt around the pulleys. - 4
Remove the old belt
Loosen any tension device or clip and slide the old belt off the pulleys. Inspect for cracks, glazing, or fraying. Keep the belt in view during removal so you can compare dimensions with the replacement.
Tip: Handle the belt gently to avoid creating new cracks during removal. - 5
Confirm belt type and size
Compare the old belt to the replacement for width and length; ensure it matches the model specifications. If in doubt, measure the old belt’s outer length and width and cross-check with the replacement’s spec.
Tip: When you don’t have the manual, contact the manufacturer’s support with your model number. - 6
Install the new belt
Route the new belt along the pulleys following the same path as the old belt. Ensure there are no twists and the belt sits fully in each groove. Rotate the handwheel by hand to verify smooth movement before closing the cover.
Tip: If the belt binds, back it off and re-seat; forcing it can damage the pulleys. - 7
Check tension and alignment
With the cover off, gently test belt tension by pressing midway between pulleys; there should be slight give, not sagging. Align pulleys to ensure the belt tracks straight during operation. Misalignment causes premature wear and poor stitch timing.
Tip: A tension gauge is helpful but not always necessary; use your judgment and recheck after a test run. - 8
Reassemble the machine
Replace the motor cover and reinsert screws securely. Keep the workspace tidy and return any removed components to their original place. Double-check that no tools or rags are left inside the machine.
Tip: Tighten screws in a cross pattern to avoid warping the cover. - 9
Test run and finalize
Plug in, select a scrap fabric, and run several stitches at different speeds. Observe for regular timing, consistent feed, and absence of unusual sounds. If irregularities appear, stop and re-inspect belt seating and tension.
Tip: Record a quick test report noting any adjustments needed for future reference.
Your Questions Answered
Will a replacement belt fit every sewing machine model?
No. Belts come in different types, widths, and lengths tailored to specific models. Always verify the belt type and size from the manual or manufacturer before purchasing a replacement.
Belts aren’t universal; check your model’s belt type and size to ensure a proper fit.
How can I tell if the belt is worn or damaged?
Look for cracks, creases, glazing, fraying, or loss of tension. A belt that feels stiff or slips under load is often past its useful life and should be replaced.
Cracks, glazing, or looseness usually means the belt needs replacing.
Can I run the machine with a belt that’s broken or missing?
No. A broken or missing belt prevents the drive from turning the handwheel and can damage pulleys or the motor. Stop and replace the belt before attempting to sew.
Do not operate the machine with a broken belt; replace first.
How often should belts be inspected or replaced?
Inspect belts during routine cleaning or every few months of hobby sewing. Replace them when wear is evident or if your machine begins to skip stitches or loses timing consistency.
Check belts during routine cleanings and replace when you notice wear.
Should I lubricate the belt or pulleys when fitting a new belt?
Generally, you should not lubricate a sewing machine belt. Lubricants can cause belt slippage and attract dust. Use light machine oil only on moving parts as recommended by the manual, not on the belt path.
Don’t oil the belt itself; only lubricate other moving parts per the manual.
Is belt replacement safe for beginners?
Yes, with patience and careful attention to model-specific steps. Follow the manual, keep screws organized, and don’t rush the reassembly. If you’re unsure, seek help from a local technician.
It’s doable for beginners if you follow the steps slowly and carefully.
Watch Video
The Essentials
- Identify the correct belt type before buying.
- Unplug the machine and protect yourself with a clean workspace.
- Route, seat, and align the belt carefully to prevent timing issues.
- Test on scrap fabric to confirm proper operation before normal use.
