How to Put Sewing Machine Back Together: A Step-by-Step Guide
Learn a clear, safe method for putting a sewing machine back together after disassembly, with a practical, model-agnostic approach, lubrication pointers, and test steps to restore reliable stitching.
To put sewing machine back together, follow a careful, reverse-order reassembly. Start with a clean bench, lay out every part, and verify none are damaged. Reattach the frame, gear train, and drive components in the correct sequence, using the service manual for exact order and lubrication points. Finally, test the machine at idle and in stitch modes to confirm proper timing and smooth movement.
Why Reassembly Requires Precision
Reassembling a sewing machine is a precision task: a small misalignment can throw off needle timing, tension, and stitching quality. Understanding the exact order of parts and how they interact helps prevent skips, jams, or belt wear. For home repair, you often begin with the frame, then the rotor or pulley, then the drive belt, and finally the needle bar linkage. If any piece is out of place, you may mis-tension the timing or strip gears. This is why it matters to know how to put sewing machine back together correctly, and to double-check clearances before testing. A systematic approach minimizes the risk of expensive damage and makes the test stitch predictable. According to Sewing Machine Help, taking a methodical approach reduces common reassembly errors and extends the life of the machine. From a practitioner’s perspective, patience pays off: rushing can create tiny misfits that become large malfunctions once the motor starts. With the right sequence, you can restore smooth operation and preserve bobbin timing, feed dogs, and spool pin alignment. Keep a clean bench, use good lighting, and work slowly, validating each alignment with a quick manual rotation before powering on.
Tools, Workspace, and Safety Setup
Before you begin reassembly, set up a clean, well-lit workspace. Use a shallow tray to organize small screws and springs, and keep the service manual nearby for reference. Good lighting helps you spot bent parts, hairline cracks, or burrs that could snag fabric or seize timing. The list below covers essential tools and materials. Always work slowly and avoid forcing any joint; a misaligned part can damage gears or the needle bar. Safety glasses are optional but recommended when removing housing screws or dealing with spring-loaded components. Ensure the machine is unplugged during teardown and reassembly to prevent accidental starts. A magnetized tray can hold tiny screws and washers, reducing the risk of losing components. When in doubt, replace damaged parts rather than attempting a field repair. This prevents fallback issues during test stitching and reduces the chance of later mechanical failure.
Organizing Parts and Documentation
Label each part as you remove it and photograph positions before disassembly. A simple map or exploded-view sketch can save hours during reassembly. Keep screws in labeled containers or on a magnetic mat to preserve their relationship to specific locations. Have the service manual open to confirm tolerances, oil points, and the recommended lubricant type. According to Sewing Machine Help analysis, keeping track of part orientation and lubrication points reduces reassembly errors by a wide margin. If you must improvise, aim to recreate the original layout as closely as possible and avoid mixing parts from different models. When parts are small, place them in a tray and handle them with precision tweezers. Double-check that springs, levers, and linkages move freely without binding before continuing.
Reassembly Sequence: A Logical Flow
A logical reassembly flow minimizes backtracking. Start with the sturdy frame and base before installing moving components. Install the core gear train and alignment sleeves, then reinsert the rotor or pulley assembly. Attach the drive belt and tension mechanism, followed by needle-bar linkage and thread-path components. Reconnect the needle plate and presser foot bar, paying attention to alignment marks or factory dotted lines. If your model uses a cam stack or timing gear, reinsert it with the correct orientation. Maintaining a consistent sequence helps preserve timing and prevents cross-threading. The exact order will vary by model, so refer to the manual for your machine. Sewing machines vary in how their parts engage; the goal is to restore a smooth, unobstructed motion that feels identical to when the machine was new. A careful, documented approach will guide you through any model.
Lubrication, Tension, and Calibration
Lubrication is model-specific: use the oil points identified in your manual and avoid over-application, which can attract lint and cause buildup. Wipe excess oil from surrounding components. After lubrication, check belt tension and ensure the belt tracks without rubbing on the hood or pulley. If timing is adjustable, use the manual’s specified method to set it, and test manually by turning the handwheel to feel for smooth operation. A few drops at each joint is usually enough to lubricate moving metal without leaking into electrical areas. Remember that tension on the thread path and bobbin case directly affects stitch quality. Small misalignments can produce skipped stitches or bird-nesting beneath the fabric. Regular calibration ensures the feed dogs engage evenly and the “needle up/needle down” mechanism returns to the correct position. Keep a note of your settings for future reference.
Testing and Troubleshooting Post-Reassembly
With the machine reassembled, start with a dry run without thread to listen for unusual sounds or binding. Then thread the machine and run test stitches on scrap fabric, watching for even feed, consistent stitching, and proper thread tension. If you hear grinding or feel resistance, stop and recheck the timing, screws, and belt alignment. Make incremental adjustments rather than large, sweeping changes. Use scrap fabric to confirm tension and stitch length across different fabrics. If stitches loop or pucker, revisit the tension discs and take-up lever. When the machine runs smoothly on scrap fabric, you’re ready for a final test with a light-weight project. Document any changes you make so you can reproduce good results in the future. A cautious, methodical approach reduces the likelihood of post-reassembly jams.
Tools & Materials
- Screwdrivers (flathead and Phillips)(Keep small sizes for internal screws)
- Hex/Allen wrenches(For frame screws common in many models)
- Needle-nose pliers or tweezers(Handling tiny parts and springs)
- Magnetic parts tray(Keeps screws organized by location)
- Soft lint-free cloth(Cleaning components before reassembly)
- Sewing machine oil / lubricant(Use only lubricant recommended in the manual)
- Service manual or owner’s guide(Verify exact order, tolerances, and oil points)
- Good lighting(Inspect alignment and small parts clearly)
- Photography/notes setup(Document positions for unfamiliar models)

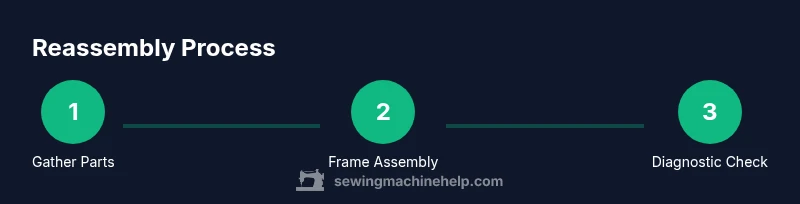

Steps
Estimated time: Total time: 60-90 minutes
- 1
Gather and verify parts
Collect all screws, gears, frame components, and moving parts. Compare against the manual to confirm nothing is missing or damaged. Photograph positions as you go to create a reference map.
Tip: Label fasteners with color codes and keep a running photo log. - 2
Reattach frame and primary housing
Secure the base frame and housing to provide a stable foundation for the remaining components. Ensure the screws align with the correct threaded holes and tighten gradually to avoid warping.
Tip: Tighten in a crisscross pattern to distribute load evenly. - 3
Install gear train and bearings
Insert gears, sleeves, and bearings in the prescribed orientation. Check that each gear seats fully with no side-to-side play; misaligned gears will cause timing errors.
Tip: Turn the assembly by hand to confirm smooth rotation before proceeding. - 4
Reconnect drive belt and tensioner
Route the belt along the pulley paths as shown in the manual. Set the tension to the specification; avoid over-tightening which can wear bearings or crack pulleys.
Tip: If your model uses a spring-loaded tensioner, verify the spring is intact. - 5
Reinstall needle bar and thread path
Position the needle bar, needle clamp, and take-up lever in their correct order. Ensure the thread path aligns with the guides and不会 snag on the hook or shuttle.
Tip: Check needle clearance with the needle in its highest and lowest positions. - 6
Lubricate, adjust timing, and test run
Lubricate identified points, then check timing by turning the handwheel and listening for consistent, smooth movement. Run a dry test, followed by a threaded test on scrap fabric.
Tip: Document timing settings and any adjustments for future reference.
Your Questions Answered
Is reassembling a sewing machine safe for beginners?
Yes, provided you follow the manual closely and work slowly. If you encounter worn parts or missing pieces, seek professional repair.
Yes, beginners can reassemble safely by following the manual and taking it slow. If something looks worn or missing, get professional help.
What is the most common mistake when reassembling?
The most frequent error is incorrect timing or misplacing a gear, which can cause skipped stitches or jams. Always verify the order and alignment against exploded diagrams in the manual.
The most common mistake is wrong timing or gear placement. Always verify against diagrams in the manual.
Do I need special tools for all models?
Most models require basic tools, but some may need model-specific screws or tensioners. Refer to the manual or service notes for the exact toolkit.
Most machines use common tools, but some models need model-specific items. Check the manual.
How can I tell if timing is correct after reassembly?
Run stitches on scrap fabric and watch for consistent top and bottom stitches, proper thread tension, and no looping. If issues appear, re-check the timing marks and belt path.
Test on scrap fabric; look for consistent stitches and tension. Re-check timing if problems show up.
Should I lubricate every joint?
Only apply lubrication to points listed in the manual. Over-lubrication can attract lint and cause residue buildup.
Only lubricate where the manual says; too much oil causes lint buildup.
Watch Video
The Essentials
- Plan the reassembly sequence before starting.
- Verify timing and lubrication points with the manual.
- Test on scrap fabric to confirm settings.
- Document changes for future maintenance.
