Repairing an Industrial Sewing Machine: Step-by-Step Guide
Learn to diagnose, disassemble, clean, adjust tensions, oil, and safely repair an industrial sewing machine with practical steps, tools, and safety tips for home workshops and small shops.
Goal: repair an industrial sewing machine safely by diagnosing common faults, sourcing standard parts, and restoring stitch quality. You’ll learn how to inspect belts and gears, verify timing, adjust thread tensions, oil moving parts, and replace worn components. Gather basic tools and safety gear before you start, then test on scrap fabric.
Why Industrial Sewing Machine Repair Matters
In any sewing operation, reliability matters. A delay due to a misbehaving machine can derail production, waste fabric, and frustrate operators. According to Sewing Machine Help, structured repair work reduces downtime and extends the life of heavy-duty equipment. This guide shows how to diagnose faults, plan fixes, and restore stitch quality on an industrial sewing machine. You’ll learn to identify wear in belts, timing issues, tension misadjustments, and lubrication gaps that commonly cause skipped stitches or inconsistent feeding. Emphasize safety first: unplug the machine, secure the work area, and wear eye protection when inspecting moving parts. With careful steps, a routine repair can save money and keep your workshop running smoothly.
Tools and Safety First
Before you touch any moving parts, assemble a basic toolbox and PPE. You’ll need screwdrivers set, hex keys, an adjustable wrench, needle-nose pliers, lint brush, canned air or a blower, and a light source. Use machine-friendly oil rated for sewing gear trains and a clean container for small fasteners. Wear safety glasses, gloves, and closed-toe shoes. Disconnect power and engage a lockout if the machine shares a multi-user power source. A tidy workspace reduces the risk of dropped screws and misaligned components. As you prepare, plan your repair and keep track of spare parts and worn items you might replace.
Diagnosing Common Faults
Most issues fall into a few categories: timing errors, tension problems, belt wear, lint buildup, and lubrication gaps. Start by running a scrap fabric sample to observe stitch quality, then inspect the needle, bobbin case, and feed dogs for alignment. Look for skipped stitches, looping, or birds-nesting under the material. If threads fray or tension fluctuates, recheck top and bobbin tensions, then clean the path from needle bar to take-up lever. Sewing machines in busy environments accumulate dust and lint that can hinder movement; gently remove lint with a soft brush and canned air. According to Sewing Machine Help, documenting the fault pattern can speed up diagnosis.

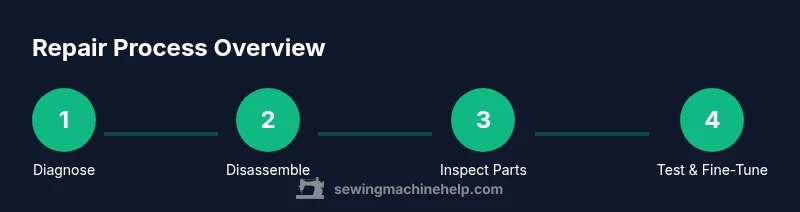

Repair Framework: Plan, Disassemble, Inspect, Replace, Reassemble
Adopt a structured repair framework to minimize downtime. Plan by listing suspected parts and potential replacements. Disassemble only what you need to access the fault, keeping track of screws and small parts. Inspect for wear on belts, gears, and the take-up mechanism; look for bent hooks or misaligned needle bars. If a part is worn, replace with a compatible component and ensure the fit is clean. Reassemble in the reverse order and verify that screws are snug but not overtight. Finally, re-seat the needle, thread paths, and take-up lever, then test stitch quality on scrap fabric.
Reassembly, Testing, and Fine-Tuning
After reassembly, power up and run a controlled test. Check needle alignment, thread path integrity, and tension balance across top thread and bobbin. Adjust top and bobbin tensions incrementally while feeding a sample material; watch for consistent stitches, even feed, and no lint build-up. If you notice irregular feeding, recheck presser foot pressure and feed dog movement. Document the results and note any recurring faults to address in preventive maintenance. The goal is dependable performance without recurring faults.
Maintenance and Preventive Care to Avoid Recurrence
To extend the life of your industrial sewing machine, implement a routine maintenance schedule. Clean lint and dust daily, oil according to the manufacturer’s guidelines, and replace worn belts and parts on a planned cycle. Keep spare needles, bobbin cases, and belts on hand to minimize downtime. Regular checks of timing, tension, and take-up mechanism reduce the risk of major repairs. Educate operators on proper threading and fabric selection to prevent avoidable stress on the machine. Regular maintenance saves time and money and keeps production steady.
Tools & Materials
- Power tools and hand tools (screwdrivers, hex keys)(Variety of sizes, insulated where possible)
- Allen wrenches(Metric sizes commonly 1.5 to 5 mm)
- Adjustable wrench(For removing belt covers and nuts)
- Lint brush and canned air(For dust and lint removal)
- Sewing machine oil (light, non-resin)(Apply sparingly to moving parts)
- Replacement belts and bobbin cases (spare parts)(Keep compatible parts on hand)
- Needles appropriate for fabric (various sizes)(Have multiple sizes ready)
- Safety gear (gloves, safety glasses)(Protect hands and eyes)
- Small parts tray or magnetic mat(Organize screws and components)
- Shop light or headlamp(Ensure clear visibility)
Steps
Estimated time: Estimated total time: 2-6 hours
- 1
Power down and unplug
Ensure the machine is fully disconnected from power and placed on a stable surface. This prevents electrical shock and injuries from moving parts. If the machine is in a shared space, tag out the power source to avoid accidental re-energizing.
Tip: Always lockout-tagout when multiple people access the same outlet. - 2
Remove needle, throat plate, and presser foot
Take off the needle and throat plate to access the needle bar and feed mechanism. Keep parts in labeled containers to avoid mix-ups when reassembling.
Tip: Store screws in labeled containers by location. - 3
Inspect belts, drive gears, and bobbin area
Look for frayed belts, cracks, or misaligned gears. Clean lint from the bobbin area and inspect the bobbin case for burrs or rust that could affect stitch formation.
Tip: Use a bright light to spot hairline wear on belts. - 4
Check timing and take-up mechanism
Verify that the hook timing aligns with the needle. A mis-timed machine can cause skipped stitches or bird-nesting. If timing is off, only proceed if you have the proper timing gauge and guidance.
Tip: Small adjustments should be conservative to avoid over-tightening timing. - 5
Oil moving parts and lubricate
Apply oil to pivot points and gear trains as per manufacturer guidance. Avoid over-oiling, which can attract lint and cause buildup.
Tip: Wipe excess oil to prevent staining fabric. - 6
Replace worn components
Replace any worn belts, needles, or bobbin components with compatible replacements. Verify that new parts seat properly and operate freely without binding.
Tip: Test-fit new belts off the machine before reinstalling. - 7
Reassemble and test stitch on scrap
Reinstall the needle, plate, and foot, then power on and run scrap fabric. Observe stitch quality, feed movement, and thread tension.
Tip: Take notes on any adjustments needed for future maintenance.
Your Questions Answered
What are the most common faults in industrial sewing machines?
Typical issues include timing errors, needle and thread tension problems, belt wear, and lint buildup. Diagnosing these patterns helps target the right fix and avoid unnecessary part replacement.
Most issues are timing, tension, belt wear, or lint buildup. Identify the pattern to fix it efficiently.
Can I repair timing issues myself?
Timing repairs require precise alignment tools and knowledge of the machine model. If you have the right gauge and guide, you can attempt careful adjustments; otherwise, consider professional service to avoid engine damage.
Timing fixes can be tricky; use the right gauges or hire a pro if unsure.
What safety precautions should I take?
Always unplug the machine, use eye protection, and work on a stable surface. Keep small parts organized and never reach into moving parts while the machine is powered.
Unplug, wear protection, and stay organized to avoid injury.
How often should I oil my industrial machine?
Oil according to the manufacturer’s schedule, typically during routine maintenance or when the machine begins to squeak or feel stiff. Use the recommended oil and avoid over-lubrication.
Oil as recommended, and check for squeaks or stiffness between uses.
What parts are commonly replaced?
Commonly replaced parts include belts, needles, bobbin cases, and drive gears. Keep spare parts on hand to minimize downtime during busy production.
Belts, needles, bobbin cases, and gears are typical replacements.
Watch Video
The Essentials
- Plan repairs to minimize downtime
- Follow safety protocols when working with power
- Use scrap fabric to test stitch quality
- Maintain a preventive maintenance log
