Repair Sewing Machine Motor: A Practical Guide
A practical, step-by-step guide for diagnosing and repairing common sewing machine motor issues. Learn safety basics, diagnostic workflows, and maintenance tips to extend motor life for home sewers and hobbyists.
Learn how to troubleshoot and repair a sewing machine motor with a safe, step-by-step approach. You’ll unplug the machine, inspect belts, clean the motor commutator, and replace worn carbon brushes if needed. This guide focuses on common issues and when to seek professional help to protect your machine and its longevity.
Understanding the sewing machine motor
Sewing machines rely on a motor to convert electrical energy into mechanical motion that drives the needle, feed dogs, and presser foot. Most home machines use a universal motor or an AC induction motor, each with different maintenance needs. The Sewing Machine Help team notes that brushes and commutators in universal motors are common wear points, and belt condition can dramatically affect motor load. By understanding the motor type in your machine, you’ll know which parts are most likely to wear and how to approach repairs safely. This section provides a solid foundation for diagnosing problems without jumping into risky or irreversible fixes.
Common motor problems and their causes
Motor issues are usually progressive, not sudden. You may notice a lack of power, stalling, slow speeds, unusual noises, or a burning smell. Loose belts, worn carbon brushes, accumulated dust, and dirty commutators are frequent culprits. According to Sewing Machine Help analysis, many motor problems stem from debris buildup or brush wear, not just a failed winding. Recognizing these patterns helps you target the right component and decide whether to repair or replace.
Safety first: unplug, discharge, and precautions
Always start by unplugging the machine from the wall outlet before handling any internals. If your model includes a power switch or foot pedal, unplug both the machine and the pedal to eliminate residual charge. Safety glasses and gloves reduce the risk of sharp edges or hot components during disassembly. If you’re ever unsure about capacitor discharge or high-voltage parts, seek professional service. This caution protects you and preserves delicate electronics inside the motor.
Diagnosing the issue: reading symptoms and testing basics
Begin with observable symptoms: does the motor spin freely when manually rotated, is there resistance, or does the belt slip under load? Check for belt wear and tension first, then inspect the pulley and drive belt alignment. If the belt is sound, inspect the carbon brushes and commutator surface for scoring or contamination. A clean, dry contact surface usually indicates brushes are in reasonable condition. Document findings with photos to guide later decisions about repair versus replacement.
Tools, parts, and replacement considerations
Before you start, gather a basic toolkit plus replacement parts specific to your motor type. Essentials include safety gear, screwdrivers, a multimeter, a soft brush, and replacement carbon brushes if your model uses them. If the model uses a non-replaceable brush or sealed motor, a full rebuild or replacement may be required. Take time to reference the model’s service manual and ensure you have the right part numbers. This preparation reduces guesswork and helps you avoid damaged components during disassembly.
Cleaning, brushes, and commutator care
Dust and lint accumulate around the motor bearing and commutator, increasing resistance and heat. Gently remove debris with a soft brush or lint-free cloth; avoid forcing material into gaps. If you have access to carbon brushes, inspect their length; worn brushes cause poor contact and reduced performance. Use a light contact cleaner on terminals, then let everything dry completely before reassembly. Proper cleaning can restore performance without the risk of damaging windings.
When to repair, and when to replace the motor
Repairs are often cost-effective for brush wear, belt issues, or minor commutator scratches. However, if winding insulation is compromised, if there are persistent overheating problems, or if repairs would require opening sealed housings, replacement is usually the safer option. Consider the machine’s age, availability of replacement parts, and the total repair cost. The Sewing Machine Help team recommends evaluating both cost and reliability when deciding.
Maintenance plan to prevent future motor failures
Create a simple maintenance routine that includes regular belt checks, brush inspections (where applicable), dust removal, and lubrication per the manufacturer’s guidelines. Keep the motor area clean and free of lint, and replace worn components promptly. A proactive approach reduces downtime and extends motor life, helping you enjoy more consistent stitching sessions.
Tools & Materials
- Safety gear (safety glasses and gloves)(Protect eyes/skin from debris)
- Flat-head screwdriver(For prying off covers without damage)
- Phillips screwdriver(For screws in motor housing)
- Multimeter or continuity tester(Check wiring and brushes resistance)
- Soft brush or lint-free cloth(Clean debris from motor housing)
- Replacement carbon brushes(Only if your model uses replaceable brushes; ensure correct size)
- Isopropyl alcohol or contact cleaner(Clean terminals and commutator; allow to dry)
- Lubricant suitable for sewing machines(Light oil or grease per service manual)
- Owner’s/service manual for model(Reference for motor type and parts)

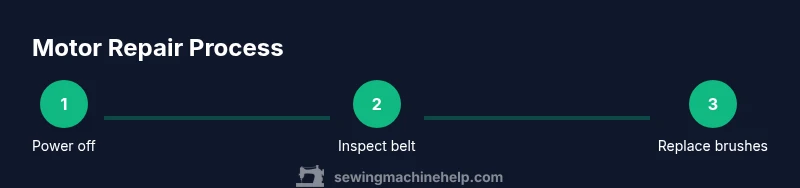

Steps
Estimated time: 25-40 minutes
- 1
Power down and unplug
Disconnect the machine from the power source and remove the foot pedal if possible. This prevents accidental startup and protects you from shock. Refrain from touching metal parts while plugged in, even if a switch is off. By isolating power first, you ensure safe disassembly.
Tip: Double-check at the wall outlet; unplug the machine at the source, not just the switch on the machine. - 2
Open the motor housing
Use the appropriate screwdriver to remove retaining screws and lift off the housing cover. Keep track of screws and note their original orientation. Do not force components apart; if parts resist, revisit screw placement and alignment. Access to the motor is now open for inspection.
Tip: Take photos during disassembly to simplify reassembly later. - 3
Inspect belt and drive train
Check belt wear, cracking, and tension. A stretched or glazed belt increases load on the motor, causing overheating or stalling. If the belt looks damaged, replace it with a correct-size belt per the model’s specifications. Ensure pulley alignment is true and that nothing is rubbing on the housing.
Tip: Rotate the pulley by hand to feel for binding or rough spots. - 4
Clean the commutator area
Gently brush away lint from the commutator and surrounding components. Avoid applying liquid cleaner directly to the windings. If you see heavy carbon buildup, use a cleaner on a cloth and wipe until the surface shines lightly. Let everything dry fully before testing other components.
Tip: Never poke into the gaps with metal tools; use a soft brush only. - 5
Check carbon brushes
Inspect the carbon brushes for wear; measure their length and contact surface. Replace brushes if they are worn past the recommended minimum length or if the contact surface is severely grooved. Reinstall with correct orientation to maintain proper contact with the commutator.
Tip: If replacing brushes, verify you have the correct part number for your model. - 6
Test electrical continuity
With power still off, use the multimeter to test for continuity in the windings and between brushes and commutator. A lack of continuity or a short could indicate winding damage. Do not power the unit until you confirm windings are within acceptable resistance ranges.
Tip: Compare readings to the service manual or manufacturer specifications. - 7
Reassemble and perform a test run
Carefully reassemble the motor housing, reinstall screws, and reconnect the power. Do a brief, low-speed test run to verify smooth operation before full stitching. Listen for unusual sounds and watch for belt slippage during the test.
Tip: Run the machine empty for a minute at low speed to confirm stability.
Your Questions Answered
What are the most common signs of a failing sewing machine motor?
Common signs include loss of power, stalling, unusual noises, and a burning smell. Inspect belts, brushes, and the commutator to identify the cause before attempting fixes.
Common signs are loss of power, stalling, unusual noises, or a burning smell. Check belts and brushes to pinpoint the issue.
Can I repair a sewing machine motor myself at home?
Simple fixes like cleaning, belt tension adjustments, and brush replacements are feasible for many home sewists. For winding damage or sealed motors, professional service is recommended.
Yes for simple tasks like cleaning and replacing brushes. For winding damage or sealed motors, consider professional service.
Should I replace carbon brushes myself?
If your model uses carbon brushes and you can confirm the correct size, replacement is straightforward. If not sure, consult the model manual or a repair professional.
If your model uses carbon brushes and you know the correct size, you can replace them. Otherwise, check the manual or seek help.
Is it safe to test the motor with a multimeter?
Only test windings with power disconnected. Do not test live circuits. Compare readings to the manufacturer’s specifications.
Test only with power off. Do not test live; compare readings to specs.
When should I consider replacing the entire motor?
If windings are damaged, overheating is persistent, or the motor fails multiple diagnostic checks, replacement is usually the safer option.
If winding damage or persistent overheating is present, replacement is often the safer choice.
Watch Video
The Essentials
- Unplug before inspecting any motor components.
- Belt, brushes, and debris are the most common motor failure points.
- Use the service manual to guide part replacements.
- Test gently after reassembly to confirm proper operation.
- If in doubt, seek professional help to avoid further damage.
