Sewing Machine Electric: A Practical Guide for Home Sewists
Explore the sewing machine electric system, diagnose common power issues, and learn safe maintenance to keep your projects moving smoothly. This guide is tailored for home sewists seeking practical, step-by-step electrical guidance.
Using the sewing machine electric system? This guide helps home sewists understand the motor, power switch, and pedal, plus safe troubleshooting steps. You’ll learn how to diagnose common power issues, maintain electrical components, and decide when professional help is best. By following these steps, you can extend your machine's life and keep projects moving smoothly.
Understanding Sewing Machine Electric: Core Components
At the heart of most home sewing machines is a compact electric system that translates your foot pedal movement into controlled motion. The motor produces rotational force, while the drive belt connects to the needle mechanism. A power switch and wiring harness route electricity from the outlet to the motor, with a speed-detect circuit or simple rheostat in some models. The pedal acts as a variable resistor, letting you control speed gradually. In many devices, a small control board monitors safe operation and sends signals to other parts such as reverse or start/stop features. The quality of these components determines how reliably your machine operates under load. Regular inspection of cords, connectors, and the external casing helps prevent unexpected shutdowns. According to Sewing Machine Help, a clean, dry environment reduces corrosion and improves contact integrity, which keeps performance consistent. Understanding these parts helps you identify which area to test when performance changes, and where to look first when troubleshooting electric issues.
Safety Essentials for Electric Sewing Machines
Safety starts with unplugging the machine before any inspection or disassembly. Never work with a live outlet or touch metal parts while the machine is connected; use a non-contact tester if you must verify voltage. Keep the work area dry and away from liquids; moisture increases the risk of shock. Inspect the power cord for cracks, loose prongs, or exposed wires; a damaged cord is a common cause of power loss and should be replaced before testing the machine. Use a grounded outlet and avoid using extension cords that are not rated for high-current devices. When cleaning contacts, switch off the device and allow any cleaned areas to dry completely. If the pedal exhibits resistance or flickers speed unexpectedly, treat it as a safety issue and proceed with a replacement or professional service if necessary. These precautions protect you and preserve the internal electronics from damage.
Diagnosing Common Electrical Problems
Electrical problems often present as power absence, erratic speed, buzzing sounds, or a smell of burnt plastic. Sewing Machine Help analysis notes that the most common issues involve worn cords, corroded contacts, and faulty switches. Begin by verifying the power source and the outlet; try a different plug or lamp to confirm supply. Check the outer power cord and plug for visible damage; if you see cracks or kinks, replace the cord. Open the exterior panel only if you have the model's service manual; otherwise skip to safer checks. Use a multimeter to test continuity in the cord and switch, and measure the resistance of the pedal circuit when at rest and when pressed. In some designs, the control board can fail, causing intermittent operation; diagnosing this may require a service manual or a technician. Keep notes of symptoms and test results to guide future decisions. This information helps you decide whether parts should be replaced or if professional diagnostics are warranted.
Troubleshooting: No Power, No Stitch
When the machine fails to power on, the issue is almost always in the path from the wall outlet to the motor. Start by unplugging and rechecking the outlet; try a different outlet or known-good adapter if available. Inspect the power switch and pedal connectors for signs of wear, corrosion, or loose connections; a loose plug can interrupt power. Clean any visible contacts with isopropyl alcohol and a lint-free cloth, ensuring no fibers remain that could conduct or obstruct. Reassemble and carefully test the machine with no fabric; listen for a normal hum and verify the speed responds to the pedal. If the motor remains silent, the fault may be a damaged power cord, switch, or internal fuse. Do not attempt to bypass safety devices or rewires; consult the manual and consider service if you can't locate a straightforward fault.
Foot Pedals, Speed Control, and How They Work
The foot pedal provides a variable resistance that the electronics or mechanical link translates into motor speed. If the pedal feels stiff or sticks, test the electrical path and cleaning; debris can cause intermittent contact. In some models, the pedal is wired through a speed control resistor or a small circuit board; in others, a direct mechanical linkage controls the motor. If the speed feels inconsistent, check both the pedal and the corresponding switch or rheostat. Inspect the connector between the pedal and machine for bent pins or loose wires, and clean with isopropyl alcohol as needed. A responsive pedal improves stitch quality and reduces wear on the motor under load. If the pedal or switch shows signs of burning or charring, replace promptly and recheck the system.
Maintaining Electrical Components: Cleaning, Lubrication, and Checks
Regular maintenance helps prevent electrical faults. Use compressed air to remove lint from the motor housing and control board area, taking care not to disturb delicate components. Wipe connectors and terminals with a lint-free cloth lightly dampened with isopropyl alcohol, then allow to dry completely before reconnecting. Check the power cord for cracks and inspect the plug prongs for wear; replace damaged parts to avoid intermittent power. If your machine uses a fuse or circuit-breaker within the case, verify it is seated correctly and not tripped. Do not lubricate electrical contacts or spray lubricants near electronic components. Scheduling a yearly check with a service manual keeps everything aligned with your model's specifications. These steps minimize corrosion and ensure safe, reliable operation.
Upgrading or Replacing Electrical Parts
If you experience recurring power issues, upgrading parts like the power switch, cord, or pedal can deliver improved reliability. Use only parts recommended by your model's manufacturer and service manual; mismatched components can damage the machine. When replacing, unplug the unit, discharge any capacitors safely if indicated, and follow torque values in the manual for screws. If the motor shows signs of weakness, such as slow acceleration or overheating, consult a technician rather than attempting a DIY rewind. Maintain a record of part numbers, installation dates, and tested results for future troubleshooting. Replacing worn components in a timely manner helps prevent cascading damage and keeps your projects moving forward.
When to Call a Pro: Professional Repair vs. DIY
Some electrical issues require professional service, especially if you encounter burnt smells, melted plastics, or overheating components. If the problem involves high voltages, complex circuit boards, or itemized part replacements beyond your comfort zone, it is safer to seek expert help. A qualified technician can diagnose hidden faults and verify that safety features function correctly, reducing risk to you and your machine. The Sewing Machine Help Team recommends weighing the cost of further DIY attempts against the machine's value and your confidence level. If you are unsure, a professional evaluation can save time and protect your investment.
Tools & Materials
- Multimeter (with AC/DC ranges)(Test voltage, continuity, and resistance in cord, switch, and pedal circuits)
- Screwdriver set (Phillips and flat-head)(Access covers and terminal screws on most models)
- Isopropyl alcohol (70% or higher)(Clean contacts and connectors without leaving residue)
- Lint-free cloths(For dry, fiber-free cleaning of contacts)
- Compressed air can(Remove lint from inner housings without moisture)
- Replacement power cord/foot pedal (optional)(Only if original cord/pedal is damaged or worn)
- Service manual for your model (optional)(Wiring diagrams help with complex faults)

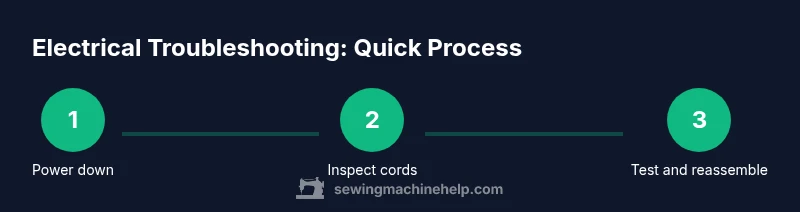

Steps
Estimated time: 1 hour 15 minutes
- 1
Power down and unplug
Always unplug the machine before inspecting any internal wiring. Remove the foot pedal if possible and open any access panels only after consulting the manual. This prevents electric shock and protects sensitive electronics from static discharge.
Tip: Use a non-contact tester to verify the outlet is dead before touching wires. - 2
Inspect the power cord and plug
Check for visible damage such as cracks, fraying, or bent prongs. A damaged cord is a common cause of power loss and should be replaced with an approved part for your model.
Tip: Do not reuse a damaged cord; replace it with a manufacturer-approved cord. - 3
Test continuity with a multimeter
With the machine unplugged, set the multimeter to continuity or low resistance. Probe the plug, switch, and pedal connectors to confirm a continuous path from outlet to motor.
Tip: If you see open circuits, replace the faulty component rather than attempting makeshift fixes. - 4
Inspect the foot pedal and switch
Look for wear, burning smells, or sticky movement. A faulty pedal or switch can cause irregular speeds or no motion at all.
Tip: If resistance is inconsistent, replace the pedal or switch to restore reliable control. - 5
Clean electrical contacts
Gently clean exposed contacts with isopropyl alcohol on a lint-free cloth. Avoid saturating components and allow the area to dry completely before testing.
Tip: Dry time matters—wet contacts can short temporarily when power is restored. - 6
Reassemble and perform a test run
Reconnect all panels, plug into a grounded outlet, and run a dry test at low speed with no fabric to confirm proper operation.
Tip: Listen for a smooth hum and verify that speed responds to the pedal. - 7
Decide on replacement vs. professional help
If issues persist after cord, pedal, switch, and basic board checks, replacing a damaged component or consulting a technician may be warranted.
Tip: Compare repair costs against the machine’s value before proceeding.
Your Questions Answered
What does 'sewing machine electric' cover?
It covers the power system, motor, switch, pedal, and wiring, plus safety considerations and basic diagnostics.
The electric system includes the motor, switch, pedal, and wiring, along with safety checks.
Is it safe to repair electrical components at home?
Only when you have basic manuals and training. Unplug everything, avoid high-voltage parts, and follow safety guidelines.
It can be safe for simple checks if you unplug and follow the manual, but not for complex repairs.
Why won't my sewing machine start even when plugged in?
Common causes are a faulty power cord, switch, pedal, or internal fuse. Run through basic diagnostics to identify the fault.
Check the cord, pedal, switch, and fuse to locate the issue.
How can I tell if the power switch is faulty?
Test continuity across the switch with a multimeter. If there’s no continuity when pressed, replace the switch.
Test the switch with a meter and replace if not working.
Do all sewing machines use the same pedal?
Pedals vary by model. Some use rheostats, others have different control methods; consult your manual.
Pedals aren’t universal—check your model’s manual for compatibility.
When should I replace the motor?
If the motor overheats, makes unusual noises, or lacks power after checks, replacement may be necessary.
If the motor fails to perform after fixing other parts, consider replacement.
Watch Video
The Essentials
- Unplug before any inspection
- Test cords and switches first
- Clean and dry all contacts before reassembly
- Consult a professional for complex faults
