Replace Sewing Machine Belt: Step-by-Step Guide
Learn how to replace a sewing machine belt safely with a practical, beginner-friendly step-by-step guide. Find tools, tips, troubleshooting, and brand guidance from Sewing Machine Help to keep your machine stitching smoothly.
By the end of this guide, you’ll confidently replace a sewing machine belt and restore smooth stitching. You’ll learn how to identify belt wear, gather essential tools, and follow a safe, step-by-step process. This quick answer confirms the goal and safety prerequisites, then points you to detailed steps and checks from Sewing Machine Help to avoid damage or injury.
Understanding sewing machine belts
Sewing machine belts transfer power from the motor to the hand wheel and needle mechanism, enabling consistent stitching. In most home machines, you’ll find a flat or slightly rounded belt made of rubber or neoprene that runs along two pulleys. Over time belts can wear, crack, stretch, or glaze, leading to skipped stitches, loss of speed, or noisy operation. Before attempting a replacement, consult your model’s manual because some machines use timing belts or variable-pitch belts that require specific procedures. When you inspect the belt, look for cracks, glazing, fraying, missing ribs, or a belt that feels loose. A worn belt is a common cause of poor performance and is one of the simplest parts to replace for a DIY repair. As Sewing Machine Help notes, proper belt condition is essential for consistent stitch quality and needle timing.
Safety first: Prepare and disconnect
Always unplug the machine and remove any accessories that could snag clothing or fingers. Work on a clean, bright surface and keep the area dust- and lint-free. If the machine sits in a cabinet, open the access panels according to the user manual. Wear safety glasses if you’re concerned about springs or small parts releasing. Have a small container ready for screws or fasteners. A quick photo of the belt path before disassembly helps you reassemble correctly. According to Sewing Machine Help, careful preparation reduces risk of misalignment and damage during belt replacement.
Tools, materials, and model checks
Having the right tools and the correct belt size is essential. Before you begin, verify your model’s belt type and dimensions in the user manual or by inspecting the old belt. Typical needs include a compatible replacement belt, a small screwdriver set, needle-nose pliers, a clean cloth, and a way to note any model numbers for future reference. If you’re unsure about the belt width or length, consult the manual or contact the manufacturer. Sewing Machine Help emphasizes that using an incorrect belt is a common cause of poor performance and can void warranties.
Inspect and measure: confirming the belt size
With the machine powered off and unplugged, remove the belt cover and gently pull the old belt away from the pulleys to inspect wear. If you cannot locate the exact size, measure the belt’s length by laying a flexible string along the belt path you see around the pulleys, then transfer that measurement to a ruler or tape. Measure the belt width by comparing it to a ruler or calipers. Use these measurements to select a belt that matches the original. If the belt appears worn, cracked, or stretched beyond the manufacturer’s tolerance, replace it rather than attempting a quick fix. Sewing Machine Help reminds readers that proper belt size ensures accurate timing and smooth operation.
Install and align: accurate belt placement
Install the new belt by seating it around both pulleys, making sure it sits fully in the pulley grooves. Watch for misalignment: the belt should run straight from motor pulley to hand wheel without rubbing any edges. If your machine uses a tensioning mechanism, follow the manual’s instructions to set the correct tension. After placement, rotate the wheel by hand to ensure smooth operation and check that the belt doesn’t slip or bind. A properly installed belt should feel taut but not overly stiff, and it should track true along the pulleys.
Testing, adjustment, and long-term care
Reattach covers or guards, plug in the machine, and run a short stitching test on a scrap fabric. Listen for unusual noises, watch for belt slip, and observe stitch consistency. If you notice slipping, recheck pulley alignment and re-tension per the manual. Keep the belt area clean and free of lint to extend belt life. Regular maintenance, including occasional cleaning of pulleys and checking belt tension, helps prevent future failures. The Sewing Machine Help approach emphasizes validating belt performance with a controlled test run before resuming normal projects.
Tools & Materials
- Replacement belt compatible with your model(Match length, width, and belt type to the original. Check the model number or manual if uncertain.)
- Small screwdriver set(Phillips and flat-head sizes commonly needed for belt guards.)
- Needle-nose pliers(Useful for gently retracting clips and guiding the belt around pulleys.)
- Soft lint-free cloth(Wipe pulleys and surfaces to remove dust and lint.)
- Manual or model reference(Helps confirm correct belt type and tension specifications.)
- Safety gloves (optional)(Protect hands when handling sharp edges or hot components.)

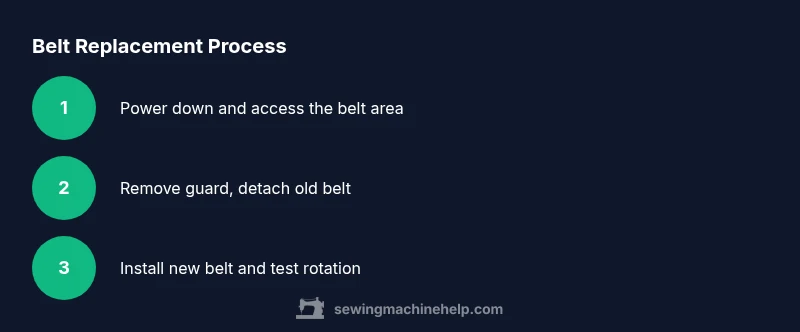

Steps
Estimated time: Total time: 30-60 minutes
- 1
Power down and access the belt area
Unplug the machine and remove the presser foot and needle plate if needed to gain clear access to the belt guard. This reduces the risk of accidental activation and gives you space to work. Have a camera-ready note of the belt path for reassembly.
Tip: Take a clear photo from multiple angles before disassembly. - 2
Remove belt guard and expose pulleys
Remove the belt cover or guard per the manual to expose both the motor pulley and the hand-wheel pulley. Keep track of any screws or clips and set them aside in a labeled container.
Tip: Keep small parts organized to avoid misplacement. - 3
Detach the old belt
Loosen any tension device if present and slip the belt off the motor pulley first, then the hand wheel pulley. Do not yank; work gently to avoid damaging bearings.
Tip: If the belt is stubborn, double-check alignment and try a gentle prying motion with a flat blade tool, taking care not to scratch surfaces. - 4
Measure and verify the replacement belt
Use the old belt as a reference or measure the belt path with string to determine length and width. Compare these measurements to your replacement belt before installation.
Tip: When in doubt, replace with the exact size recommended by the manual. - 5
Install the new belt
Seat the new belt onto both pulleys, ensuring it sits fully in the grooves. Then reattach any guards and reset the tension according to the manual’s specifications.
Tip: Rotate the hand wheel by hand to confirm smooth motion without rubbing. - 6
Test the machine and adjust as needed
Plug in the machine and perform a short stitch test on scrap fabric. Check for slippage or misalignment and recheck belt path if issues occur.
Tip: Run several stitches at different speeds to confirm consistency. - 7
Document and finish
Record the belt size and any notes from installation for future reference. Return all covers, screws, and tools to their proper places.
Tip: Label the belt with the machine model and date for quick future reference.
Your Questions Answered
Can I replace a sewing machine belt myself, or should I hire a technician?
Most home sewists can replace a belt themselves by following the manual and safety steps. If the machine is under warranty or the belt drive includes timing components, consider professional service.
Most home sewists can replace the belt themselves by following the manual and safety steps. If the machine is under warranty or has timing components, consider professional service.
How do I know what size belt to buy?
Check the machine’s manual or the original belt for size markings. If the markings are worn, measure the belt path and compare to the replacement belt specification provided by the manufacturer.
Check the machine’s manual or the original belt for size markings. If markings are worn, measure the belt path and compare to the replacement belt specification.
What should I do if the belt keeps slipping after replacement?
Recheck belt alignment and tension. Ensure the belt sits in the pulleys’ grooves and that pulleys are clean and free of burrs. A misaligned or dirty pulley can cause slipping even with a correct belt.
Recheck belt alignment and tension. Make sure the belt sits in the pulley grooves and that pulleys are clean.
Is lubrication needed for the belt?
In most home machines, belts should not be lubricated. Excess lubricant can attract lint and slip the belt. Only lubricate if the manufacturer specifically instructs to do so.
Belts in most home machines shouldn’t be lubricated. If the manual says to lubricate, follow those directions.
How long does belt replacement take for a typical machine?
For many models, the process takes about 20-60 minutes depending on access to the belt and the need to remove covers. More complex machines may require longer.
Most belt replacements take 20 to 60 minutes, depending on access to the belt and covers.
Watch Video
The Essentials
- Identify belt wear signs before replacement
- Use model-specific belt size and type
- Follow safety steps to avoid injury
- Test and re-tension according to manual
